Arp Odyssey FS Kit

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Arp Odyssey Fs Kit - Synthesizer - Main picture
  • Arp Odyssey Fs Kit - Synthesizer - Variation 1
  • Arp Odyssey Fs Kit - Synthesizer - Variation 2
  • Arp Odyssey Fs Kit - Synthesizer - Variation 3
1899,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 106247
Lieferbar
3-5 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich

Die Marke Arp

Erfahren Sie mehr über die Marke Arp und entdecken Sie den gesamten Katalog.

Kaufratgeber für Synthesizer und Drum maschine

Der ultimative Kaufratgeber für die Auswahl Ihres neuen Synthesizers oder Ihres neuen Drum maschines.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Synthesizer

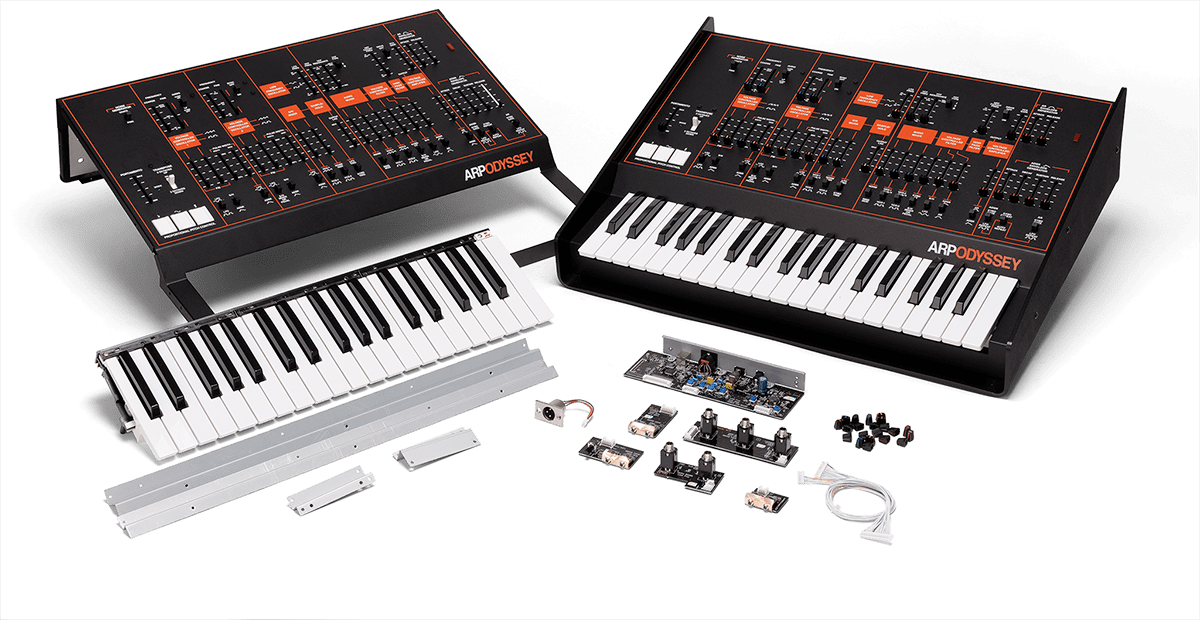

Now, with the release of the ARP ODYSSEY FS Kit, musicians have the opportunity to take the ARP legend into their own hands.

In 2015, ARP's history was thrust into the spotlight with the rebirth of the ARP Odyssey. Synthesizer fans around the world were ecstatic - authentic reissues of some of ARP's most iconic and legendary synthesizers were finally about to be revealed. From the ARP ODYSSEY FS, with its full-size keyboard, to the long-awaited ARP 2600 FS and ARP 2600 M, ARP synths were once again at the forefront of the modern music scene.

True to the ARP Odyssey FS, the kit uses the same analogue circuitry as the reissue released in 2015, preserving the original warm and rich sounds that made this iconic synth famous in the 1970s. The kit also features all the original Rev. 3 characteristics with a full-size keyboard and a black panel with orange silkscreen. And to make assembling the Odyssey easier, an illustrated guide is included; no technical knowledge or soldering is required.

The ARP Odyssey FS kit is a unique collector's item. It is distinguished from all other ARP Odysseys by its own serial number engraved on an elegant metal plate.

With this kit, not only can you get the coveted ARP sound that many legendary musicians have been using for over 50 years, but you can also build it with your own hands.
Lire la suite

Technisches Arbeitsblatt

  • Anzahl der Tasten Weniger als 49 Tasten
  • Synthesizertyp Analog
  • Tastsinn Hammermechanik
  • Same features as the ARP Odyssey but with the same dimensions as the original model and with a 37-note large-key keyboard (light touch, no velocity or aftertouch)
  • Black finish with orange silk-screen printing
  • Max polyphony: 2 voices for duophonic mode - normally monodic
  • Controllers
  • Transposition position: -2 octaves, normal, +2 octaves
  • Proportional tuning control :
  • b (pitch down) pad: -2/3 octaves - (modulation) pad
  • # (pitch-up) pad: + 2/3 octaves
  • Noise generator: white and pink
  • Portamento
  • Maximum speed: about 0.01 ms/oct
  • Minimum speed: about 1.5 s/oct
  • VCO (voltage control oscillator)
  • Waveforms: sawtooth, square, pulse (dynamic pulse)
  • Frequency range: Vco-1 in low frequency mode, 0.2 Hz-20 Hz : Vco-1 and Vco-2 (bandwidth) 20 Hz-20 kHz
  • Warm up drift : 1/30 of a semitone
  • Pulse width: 50%-5%.
  • Pulse width modulation : ADSR, +45%; Lfo,+15% Voltage controlled response : 1 V/o
  • Voltage controlled response : 1 V/oct
  • Maximum frequency shifts : Lfo sin wave, +1/2 oct; Lfo square wave, +1.5 oct; ADSR, +9 oct; S/H, +2 oct
  • Vco1 gives priority to the lowest note, Vco2 to the highest note.
  • VCF (voltage control filter)
  • Types: low pass (1: 12 dB/oct, II and III: 24 dB/oct)
  • Frequency range: 16 Hz-16 kHz
  • Maximum usable Q: 30
  • Resonance : 1/2- self-oscillation
  • Voltage controlled response : C 3 (left) : 0 V, C 6 (right) 3 V
  • VCA (voltage control amplifier): dynamic 80 dB
  • Ring Modulator
  • Type : digital
  • Input signal : Vco-1, Vco-2 (square wave)
  • Sample & hold
  • Sources: keyboard or Lfo trigger
  • Destination: Vco-1 sawtooth and square, Vco-2 square and pink noise
  • ADSR envelope generator
  • Attack time: 5 ms - 5 s
  • Decay time: 10 ms - 8 s
  • Sustain level: 0-100% or peak
  • Release time: 15 ms - 10 s
  • AR Envelope Generator
  • Attack time: 5 ms - 5 s
  • Release time: 10 ms - 8 s
  • Controller Jack
  • 6.35mm pedal connector
  • Portamento: Monaural 6.35 footswitch
  • Audio Outputs
  • Low impedance
  • 6.35 mm monaural jack
  • Maximum output level: -20 dBu@ 10 k?
  • Output impedance: 10 k?
  • High impedance
  • Connectors: XLR
  • Maximum output level: +4 dBu@ 1 k?
  • Output Impedance: 330 ?
  • Headphone output
  • 6.35 mm stereo jack connector
  • Maximum output level: 50 mW + 50 mW@ 33 ?
  • Output impedance: 10 ?
  • External audio input
  • Connector: 6.35 mm monaural jack
  • Maximum input level: -10 dBu
  • Input impedance: 22 k?
  • Midi in connector
  • USB connector: type B
  • CV jack in/out
  • CV keyboard (in/out): 1 V/oct
  • Connector: 3.5 mm monaural
  • Gate in/out jack
  • Gate in: +3 V (minimum)
  • Gate out: +10 V, note down; 0 V all notes up
  • connector: 3.5 mm monaural jack
  • Power supply: AC adapter (DC 9 V)
  • Power consumption: 6.5 W
  • Dimensions: 585 x 466 x 163 mm
  • Weight: 7.3 kg
  • Accessories: AC adapters, 6.35 mm jack cable, 3.25 mm minijack cable, user manual
Weitere Spezifikationen
Weniger Spezifikationen

Erfahrungsberichte
