Disaster area MIDI Box One DIN To 6.35mm Jack Converter
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 98154
Im moment nicht verfügbar
kontaktieren Sie uns
Lagerbestand
Nicht im Geschäft erhältlich
INFORMIEREN SIE MICH ÜBER SEINEN EINTRAG AUF LAGER
Ich möchte per E-Mail benachrichtigt werden
Go
Die Marke Disaster area
Erfahren Sie mehr über die Marke Disaster area und entdecken Sie den gesamten Katalog.
Kaufberatung für MIDI-Controller
Alles, was Sie vor dem ersten Kauf über MIDI-Controller und Masterkeyboards wissen müssen!
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Midi controller

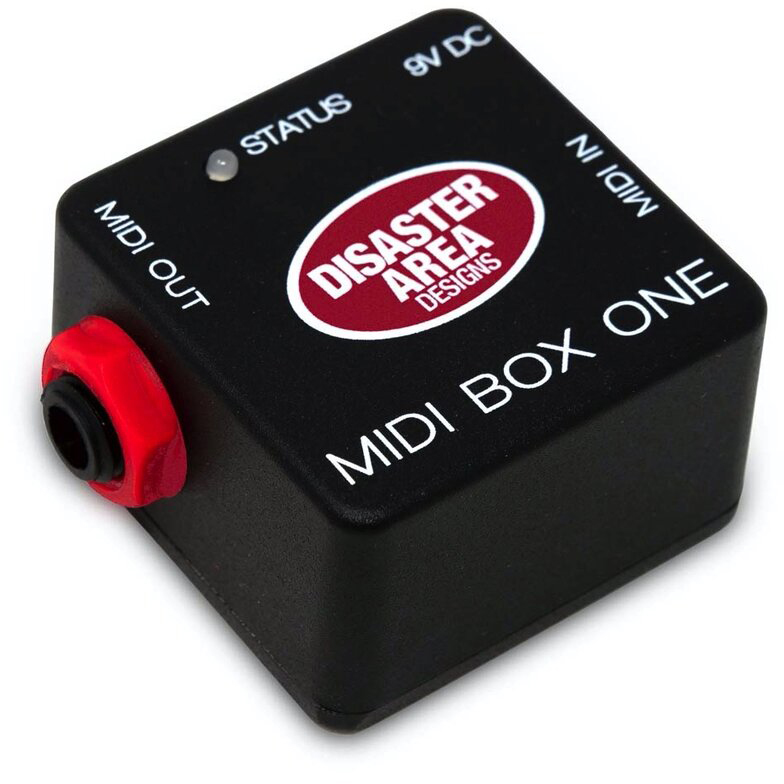

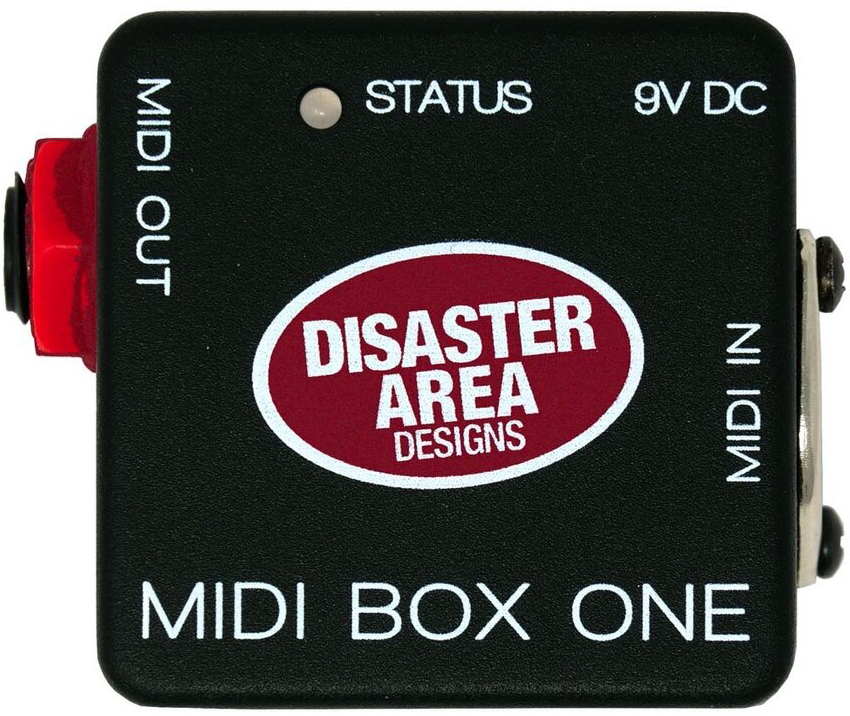

The DISASTER AREA MIDI Box One converts standard 5-pin (DIN) MIDI communications to a variety of 1/4" formats.
Featuring a single MIDI output, the MIDI Box One can output MIDI on either the tip or ring of its 1/4? jack, or send MIDI on both at the same time.
Configuration is easy, using the DIP switches on the underside of the MIDI Box One.
Featuring a single MIDI output, the MIDI Box One can output MIDI on either the tip or ring of its 1/4? jack, or send MIDI on both at the same time.
Configuration is easy, using the DIP switches on the underside of the MIDI Box One.
Lire la suite
Technisches Arbeitsblatt
- DISASTER AREA MIDI Box One
- SKU Disaster Area MIDIBOXONE
- Converts standard 5-pin (DIN) MIDI communications to a variety of 1/4" formats
- Configuration is easy, using the DIP switches on the underside of the MIDI Box One.
- Tip Active:. Suits Alexander, Meris, Empress, Bondi, and other devices using voltage mode on the jack tip
- Ring Active: Suits Chase Bliss Audio and other devices using voltage mode on the jack ring
- Tip and Ring Active: Provides separate outputs on tip and ring of the control port, enabling two MIDI outputs using our TRS Insert Cable. If you’re planning to connect two Chase Bliss Audio devices, be sure to select the RP2 dual reverse polarity cable
- Runs on standard 9/12V power, 40 mA
- 51 x 51 x 27 mm
- Compatibility : https://www.disasterareadesigns.com/shop/p/midi-box-one
