Disaster area SMARTClock Gen3

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Disaster Area Smartclock Gen3 Midi Controller - Midi Controller - Main picture
  • Disaster Area Smartclock Gen3 Midi Controller - Midi Controller - Variation 1
  • Disaster Area Smartclock Gen3 Midi Controller - Midi Controller - Variation 2
VIDEO
VIDEO
219,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 98155
Im moment nicht verfügbar
kontaktieren Sie uns
Lagerbestand
Nicht im Geschäft erhältlich
INFORMIEREN SIE MICH ÜBER SEINEN EINTRAG AUF LAGER
Ich möchte per E-Mail benachrichtigt werden
Go

Die Marke Disaster area

Erfahren Sie mehr über die Marke Disaster area und entdecken Sie den gesamten Katalog.

Kaufberatung für MIDI-Controller

Alles, was Sie vor dem ersten Kauf über MIDI-Controller und Masterkeyboards wissen müssen!

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Midi controller

Just tap the footswitch and all your gear will synchronize to its internal clock !
From 30-300 beats per minute, DISASTER AREA SMARTClock Gen3 MIDI Controller is a programmable (128 presets) tap tempo and clock generator for your rig, allowing to synchronize up to four separate tap-tempo devices plus multiple MIDI-clock capable units.

Don’t feel like tapping in the time ? Spin the illuminated knob to set the tempo in 1.0 or 0.5 BPM increments for more precise adjustments.
Tap the knob to view or change the subdivisions or output settings for each jack, then hold the knob to save the current settings to a preset.
Hold the footswitch down to advance to the next preset. You can even set the number of accessible presets so that you only use what you need.
Each tempo preset allows you to specify a tempo in BPM or milliseconds, as well as subdivisions or toggle settings for each of the 4 outputs. You can also set the SMARTClock to send a MIDI Program Change to an external MIDI device.

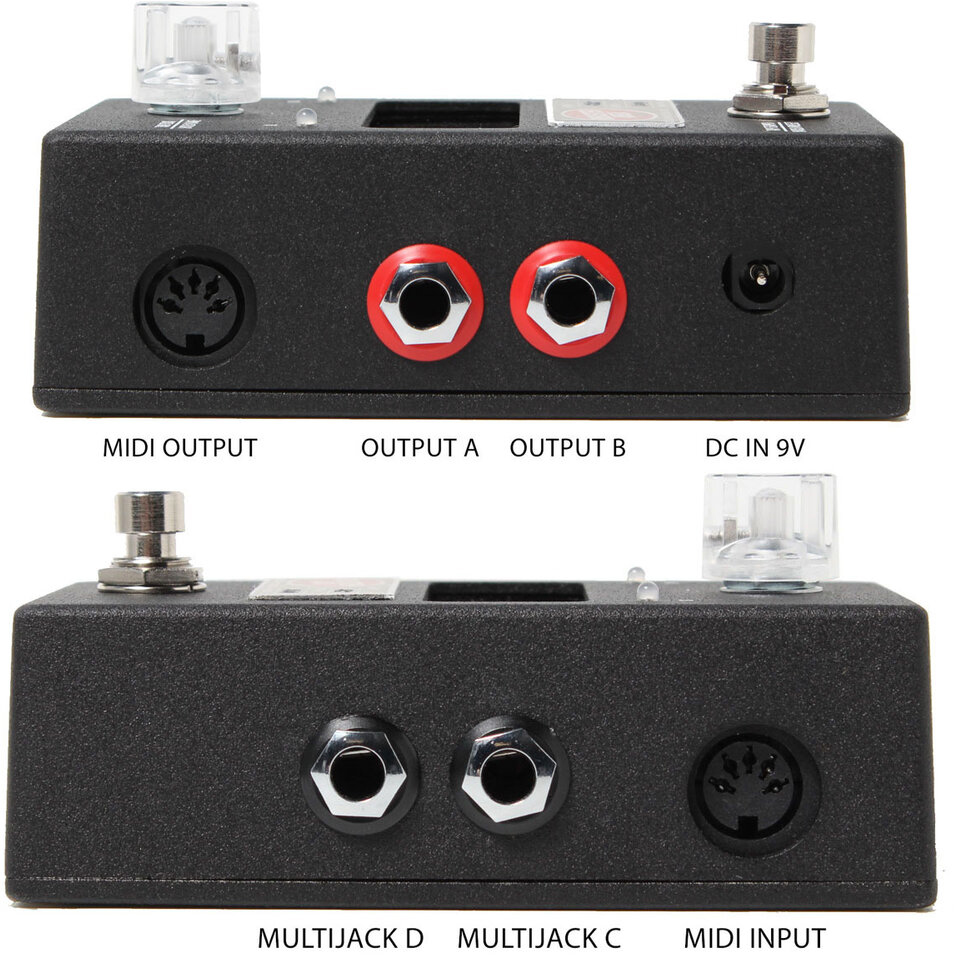

The MultiJack connectors can perform several different functions to simplify your setup :
- connect one or two 1/4" MIDI devices from companies such as Alexander Pedals, Chase Bliss Audio, Empress, and Meris
- connect an expression pedal to send MIDI messages to one or more of your devices.
- connect an external footswitch for tap tempo control.
- send tap tempo to an external device such as a DD-7, Panther Cub, Flint, and more.
Lire la suite

Technisches Arbeitsblatt

  • DISASTER AREA SMARTClock Gen3 MIDI Controller
  • SKU Disaster Area SMARTCLOCK
  • Programmable tap tempo and clock generator for your pedalboard
  • Made in USA
  • Synchronize up to 4x separate tap-tempo pedals plus multiple MIDI-clock capable units
  • Sends tap signals and clock from 30-300 beats per minute
  • Receives external MIDI clock from a computer or other device, Tempo Outputs sync to incoming clock
  • Up to 128 user-accessible presets with user-definable names
  • 2x isolated optical relay powered Tempo Outputs or Function Switch Outputs
  • 2x MultiJack connectors can function as Tempo Outputs, Function Switch Outputs, Footswitch Inputs, or MIDI Outputs
  • MIDI input and output with full thru and merge functionality
  • Internal DIP switches to customize each output
  • Tap Tempo mode with selectable tap subdivisions for each output
  • Available subdivisions include Quarter, Dotted Eighth, Quarter Triplet, and Eighth Notes
  • Runs on standard 9V power, 100 mA
  • 120 x 66 x 35 mm
  • Manual : https://www.manualslib.com/manual/994170/Disaster-Area-Design-Smartclock.html
Weitere Spezifikationen
Weniger Spezifikationen
  • DISASTER AREA SMARTClock Gen3 Programmable MIDI Clock & Tap Tempo Generator
