Ld systems ICOA 12 A BT
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 92321
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Andere Version(en) oder zugehörige(s) Produkt(e)
Die Marke Ld systems
Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.
Shopping Guide Sono Equipment
Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Aktive lautsprecher

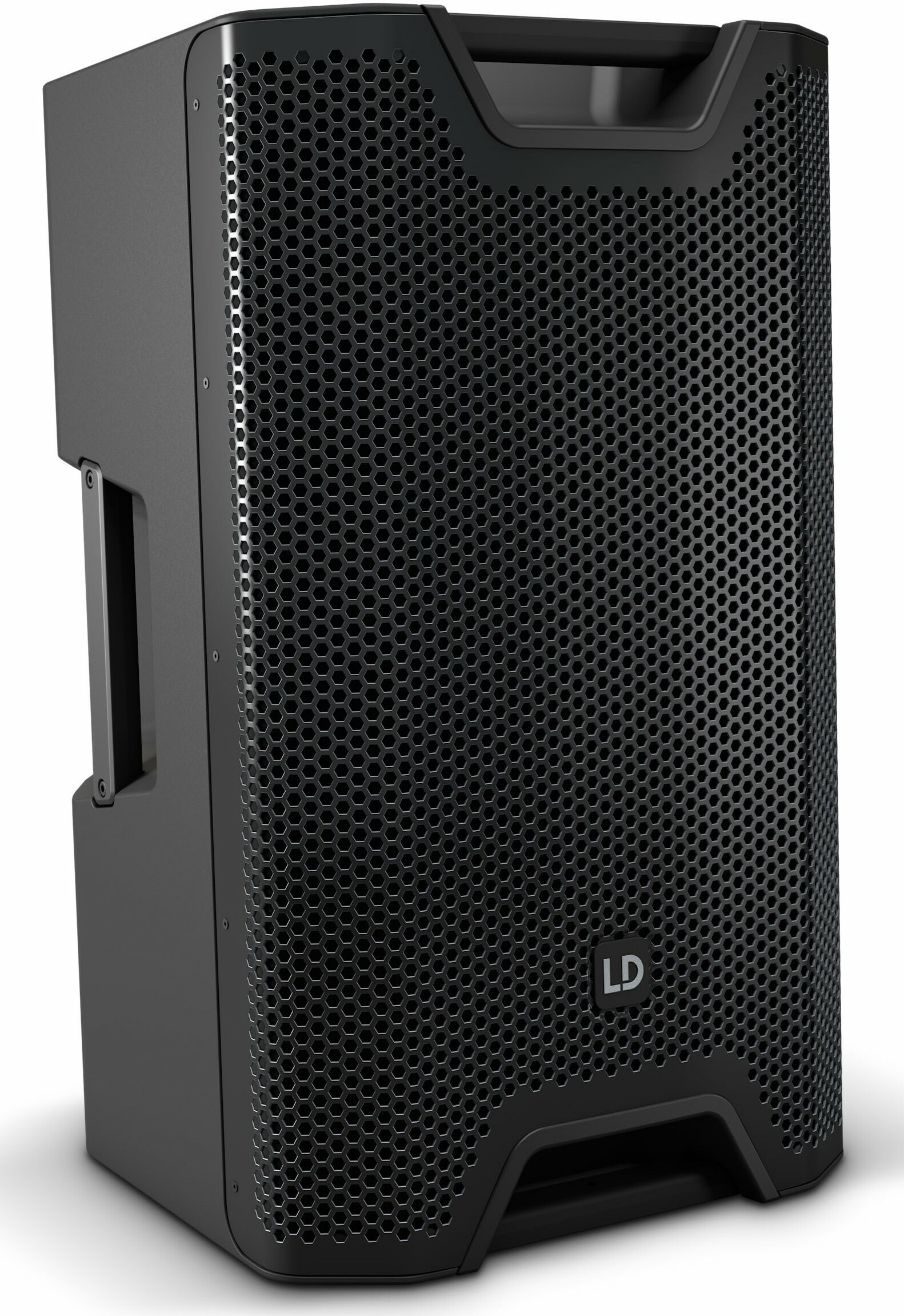

The lE ld Systems ICOA12 a BT is a 12" coaxial sound system loudspeaker with Bluetooth.
True all-rounder for broadband, satellite and stage monitor applications
Max. SPL of 126 dB and PEAK power of 1200 W
Vertical and horizontal application thanks to the coaxial structure, with CD rotary tweeter optimized thanks to BEM
Paved bass driver
DSP DynX with 4 presets, 3-band equalizer and delay function

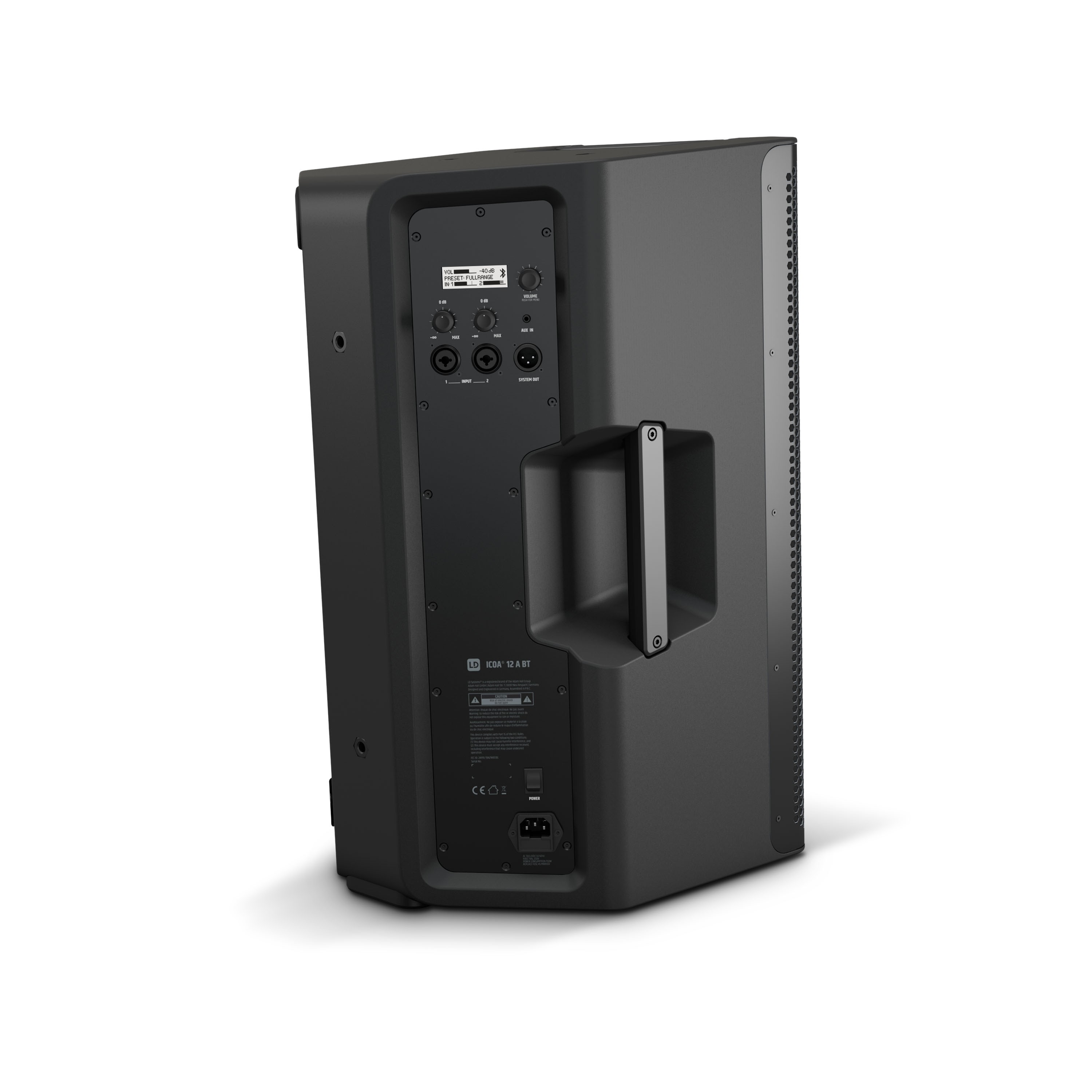

2 line/microphone input channels with individual gain adjustment potentiometers and one Mono Mix output, Bluetooth® streaming on the BT model

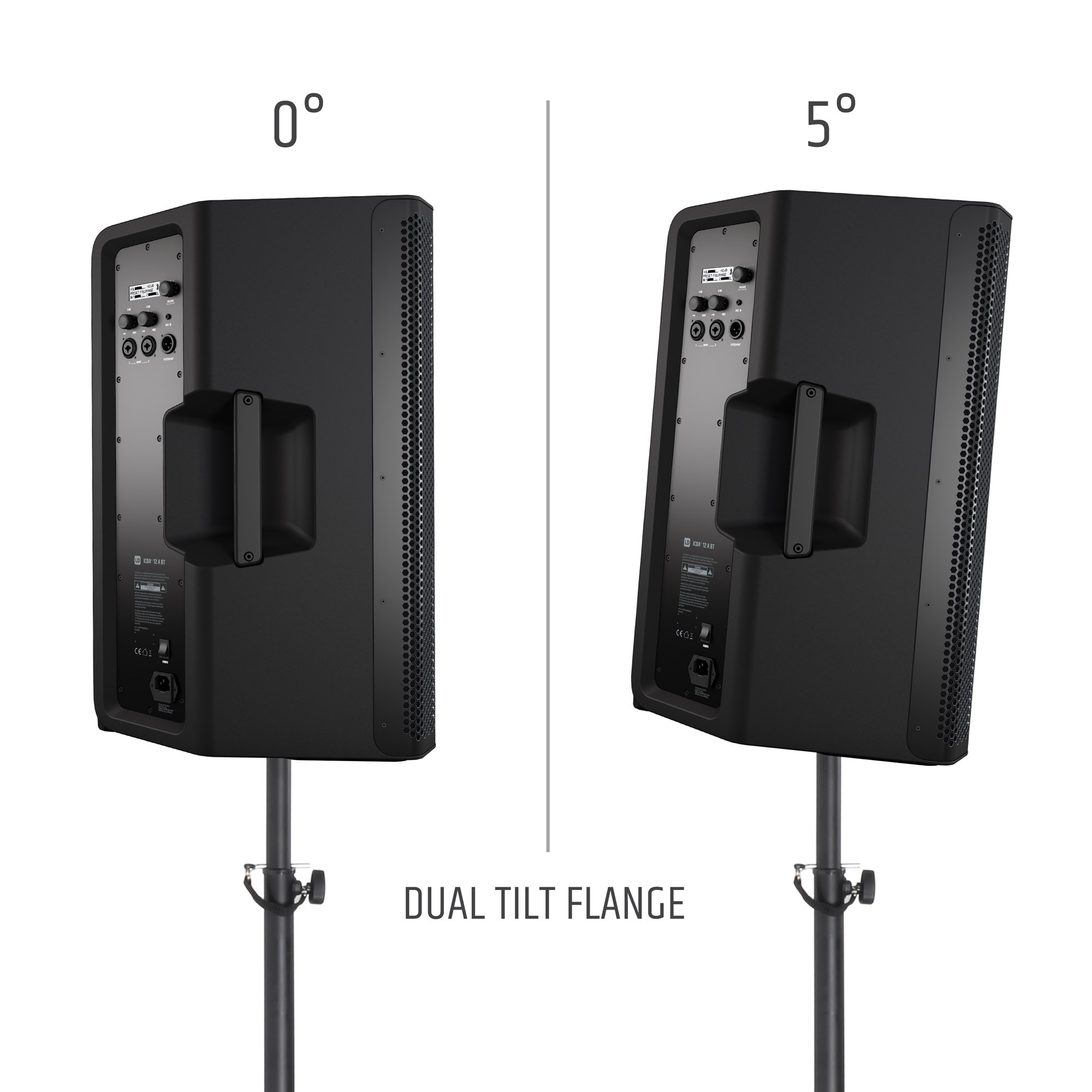

Base for Dual Tilt 36 mm stand with 0° and 5° tilt angle, 55° monitor angle with stable seat
Shockproof front grille for optimal protection of the enclosure

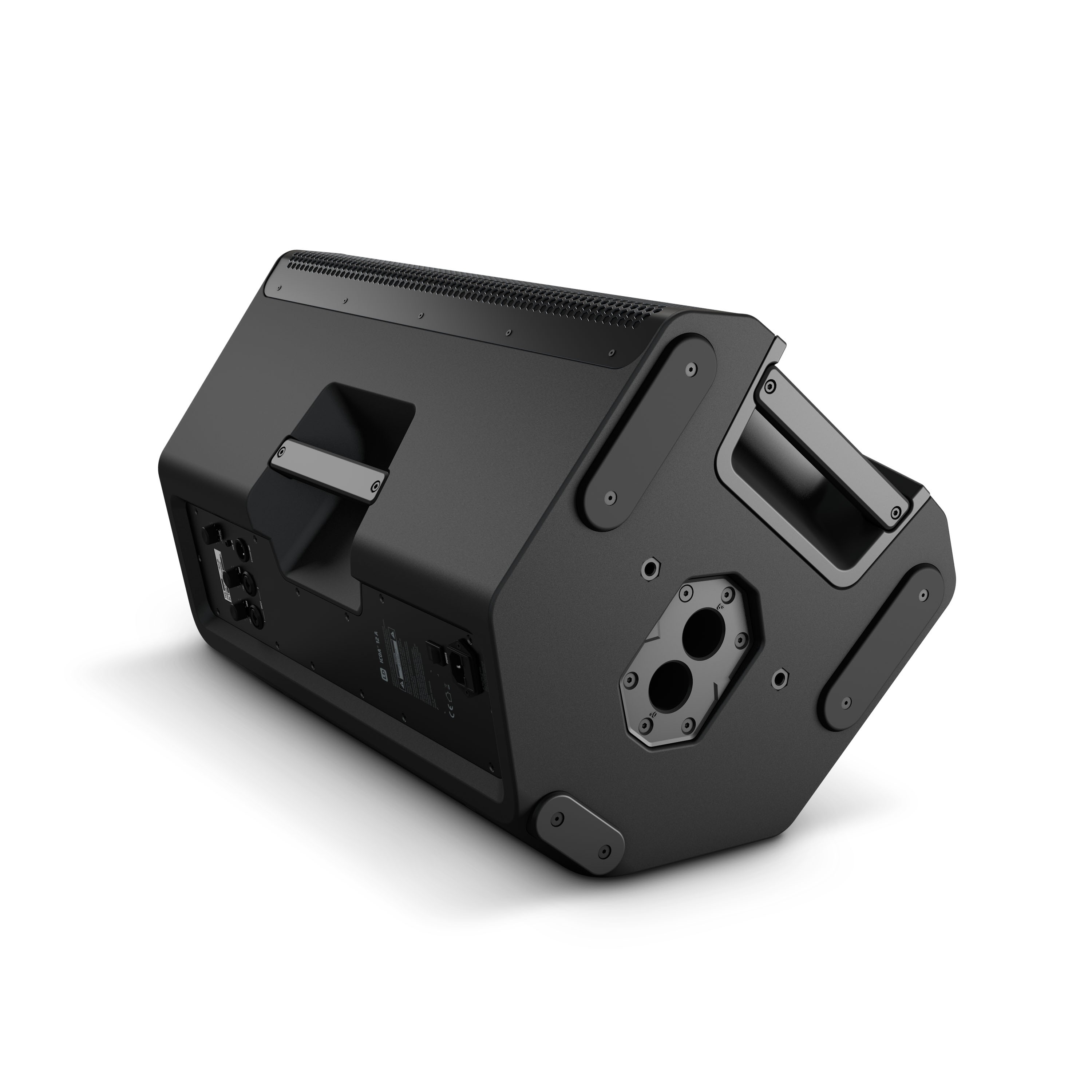

4 aluminium handles with ergonomic rubberized surface
Various accessories available as options for installation and transport
True all-rounder for broadband, satellite and stage monitor applications
Max. SPL of 126 dB and PEAK power of 1200 W
Vertical and horizontal application thanks to the coaxial structure, with CD rotary tweeter optimized thanks to BEM
Paved bass driver
DSP DynX with 4 presets, 3-band equalizer and delay function
2 line/microphone input channels with individual gain adjustment potentiometers and one Mono Mix output, Bluetooth® streaming on the BT model
Base for Dual Tilt 36 mm stand with 0° and 5° tilt angle, 55° monitor angle with stable seat
Shockproof front grille for optimal protection of the enclosure
4 aluminium handles with ergonomic rubberized surface
Various accessories available as options for installation and transport
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 301 bis 600 watts RMS
- PA-Lautsprechertyp Bühnen & FOH Lautsprecher
- Product type: Sound system speaker
- TypeActive
- Bluetooth Audio DecoderBluetooth 4.0
- Diameter of driver/medium12 ".
- Boomer diameter: 304.8 mm
- Boomer magnet: Ferrite
- Boomer brand: Custom made
- Optimized BEM horn horn with constant directivity
- Tweeter diameter: 1 ".
- Tweeter diameter: 25.4 mm
- Tweeter magnet: Ferrite
- Tweeter brand: Custom made
- Tweeter coil: 1 "
- Diameter of Mobile Coil Tweeter25,4 mm
- Class D amplifier
- Dispersion angle (H x V)90 ° x 50 °
- Power (RMS)300 W
- Power (peak)1200 W
- Frequency response: 50 - 20000 Hz
- Frequency response kHz2 kHz2 kHz
- Max. SPL level (peak)126 dB
- Protection circuits Multiband limiter, Overload, Overheating, Overheating, Overvoltage
- Settings2 x Gain, Rotary encoder/push button, On/off switch
- IndicatorsLCD display
- Mic/Line Inputs2
- 6.3 mm mic/linejack input connectors Combined (balanced) sockets, XLR
- Line inputs1
- Line input connectorsMini stereo 3.5 mm mini-jack
- Line outputs1
- Line output connectorsXLR
- Mains voltageSwitching power supply
- Power consumption150 W
- Ambient temperature (operating)0 - 40 °C
- Mains voltage100 V - 240 V AC / 50 - 60 Hz
- Relative humidity level below 80%, no condensation
- Fuse T4AL 250 V
- Case materialPolypropylene
- Finishing of the cabinetBass Reflex
- tripod flange0°, 5°, 36 mm base plate
- Monitor angle55 ° °
- Width375 mm
- Height (mm)635 mm
- Depth396 mm
- Bluetooth Features
- Weight19.95 kg
- Accessories (included)Power cable
