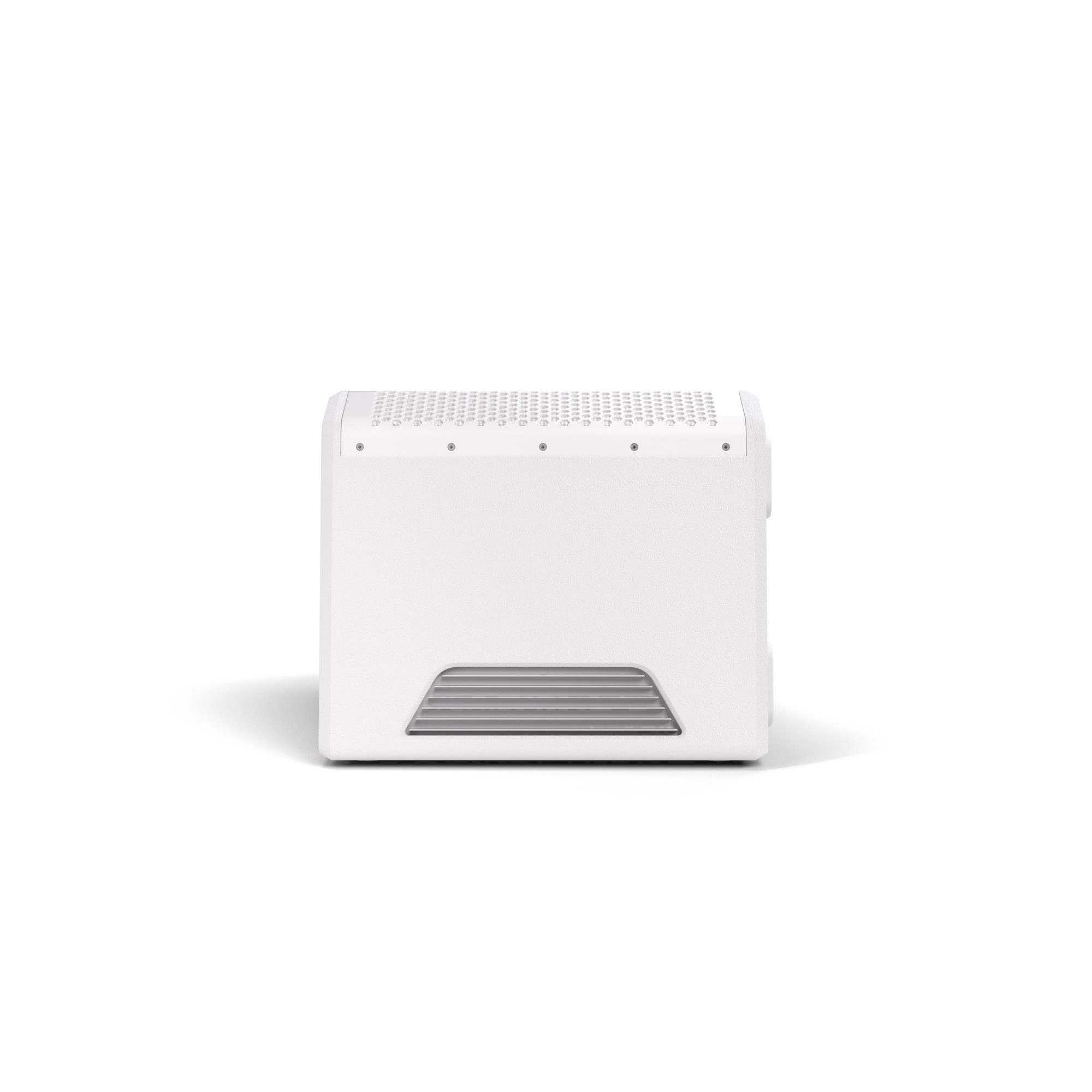

The MON 8 A G3 W is part of an entirely new family of high-performance powered stage monitors.

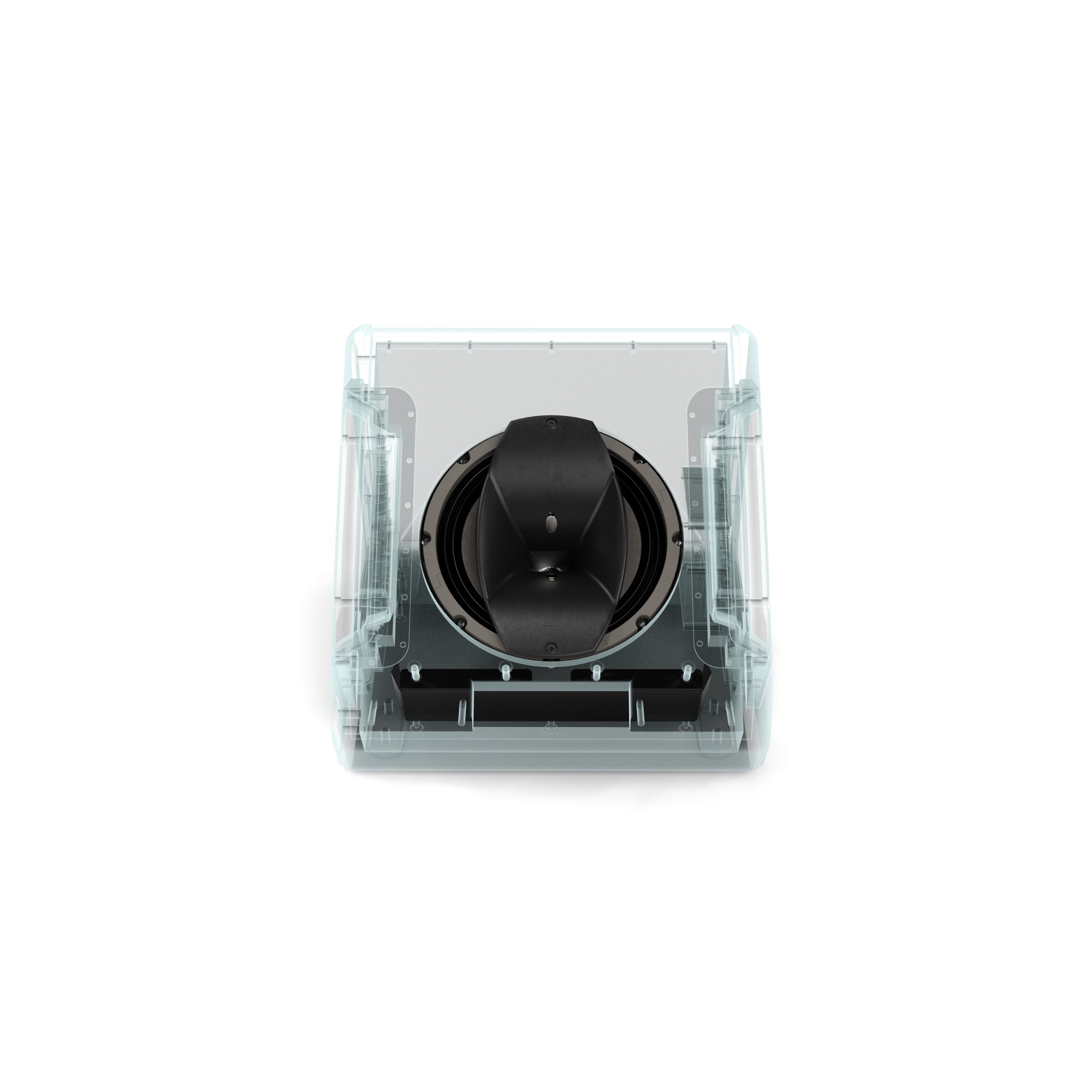

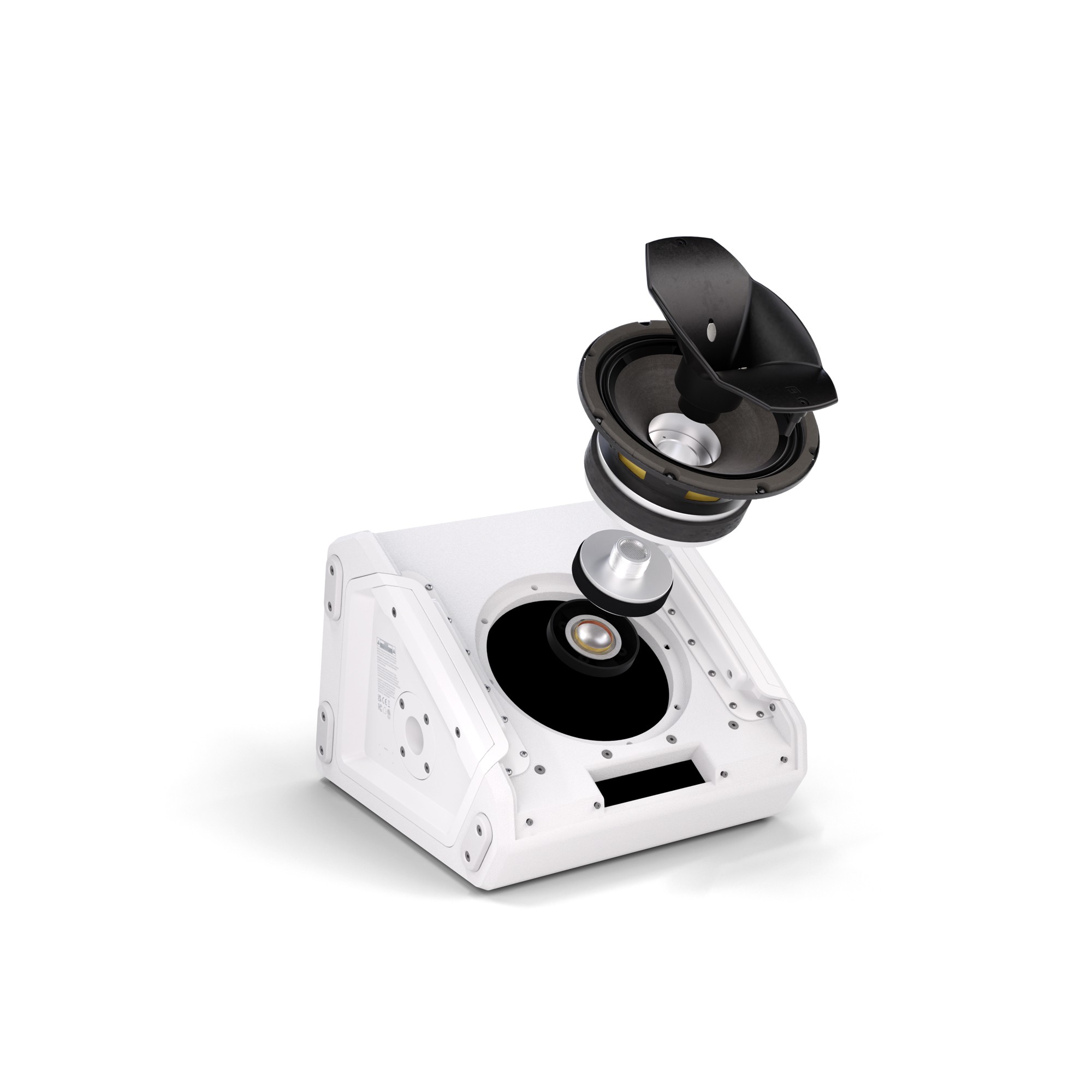

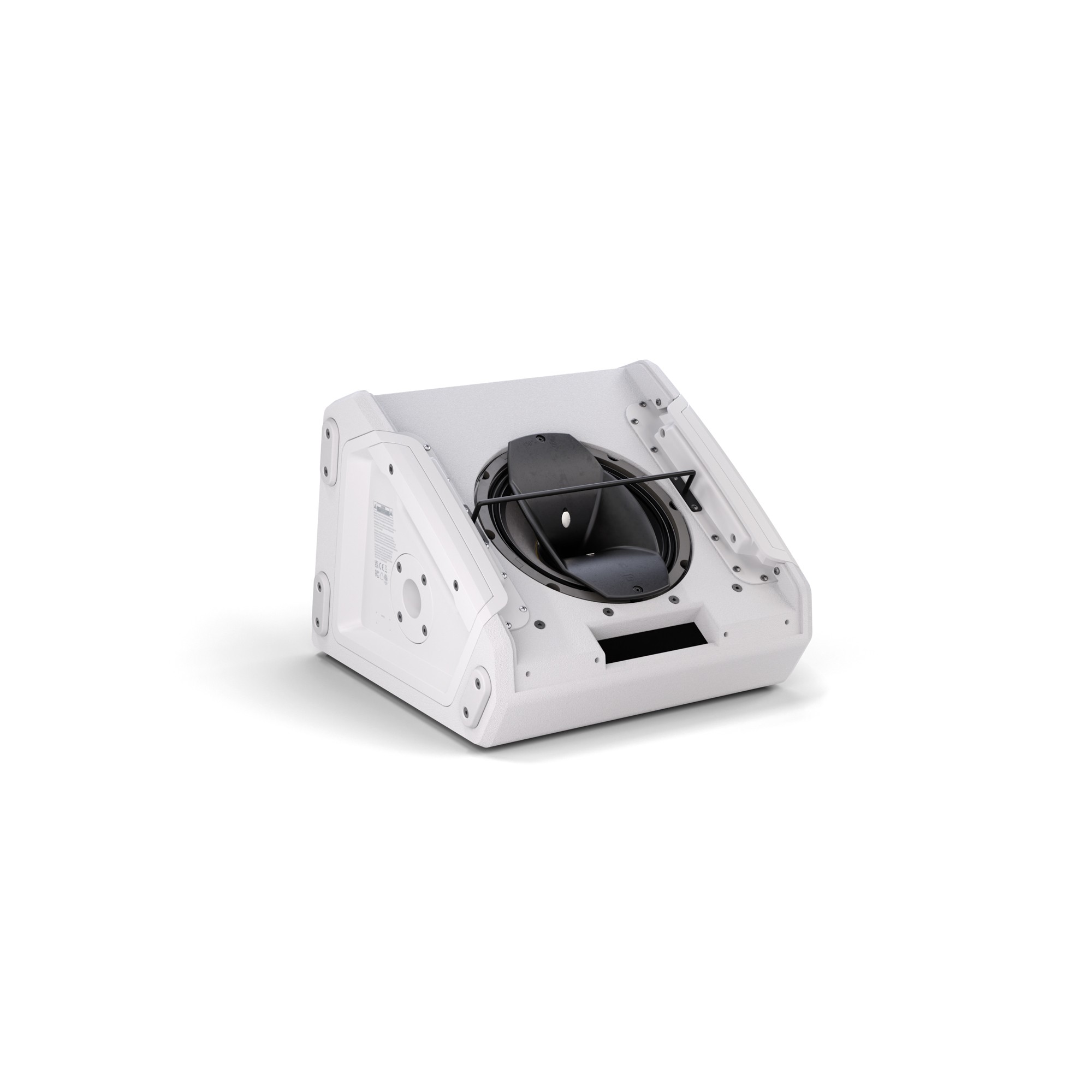

The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals, and makes this quality available to everyone. For example, the advanced coaxial drivers, equipped with a 50° x 90° constant directivity horn: they are a true point source, an acoustically ideal solution, guaranteeing exceptional audio performance, even in close listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.

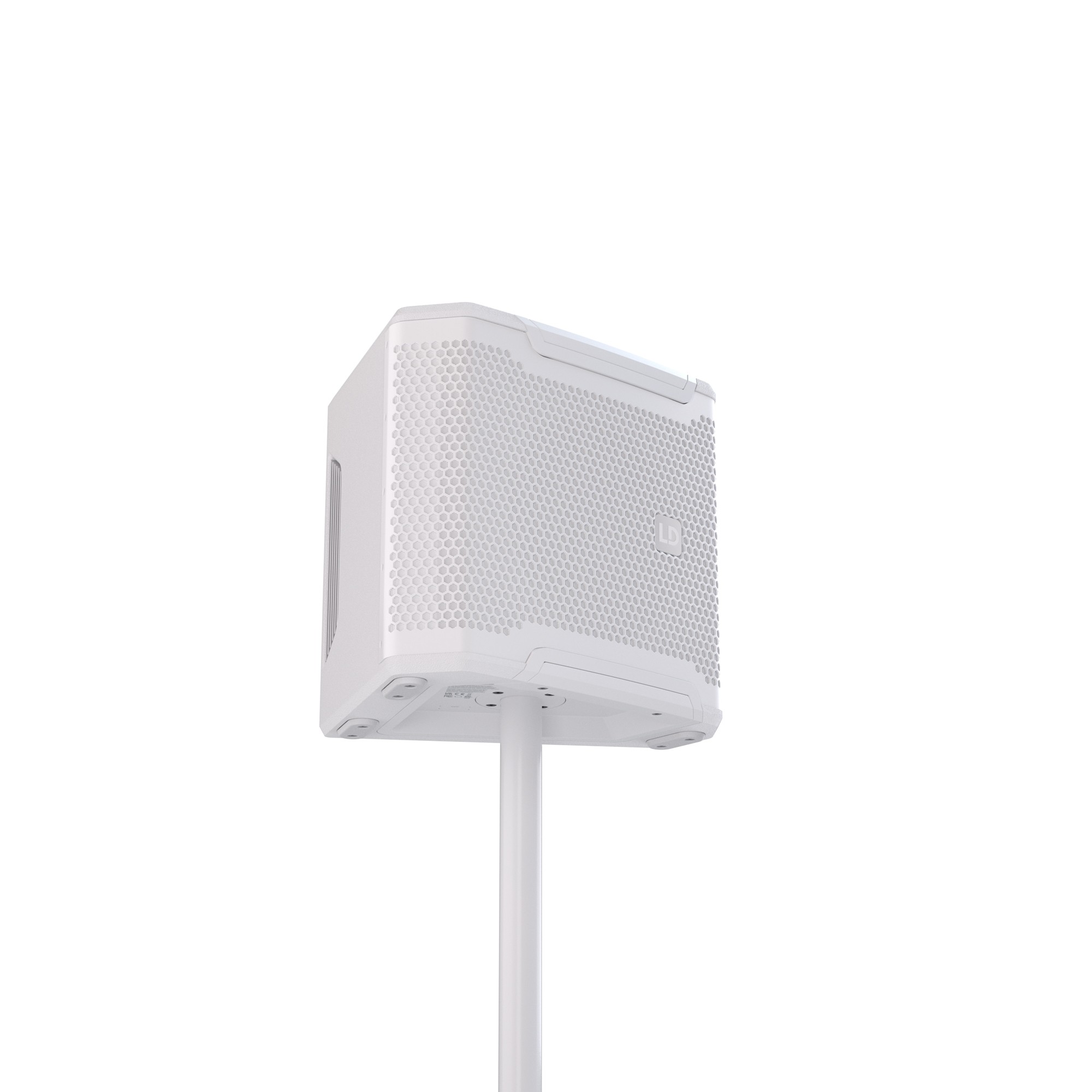

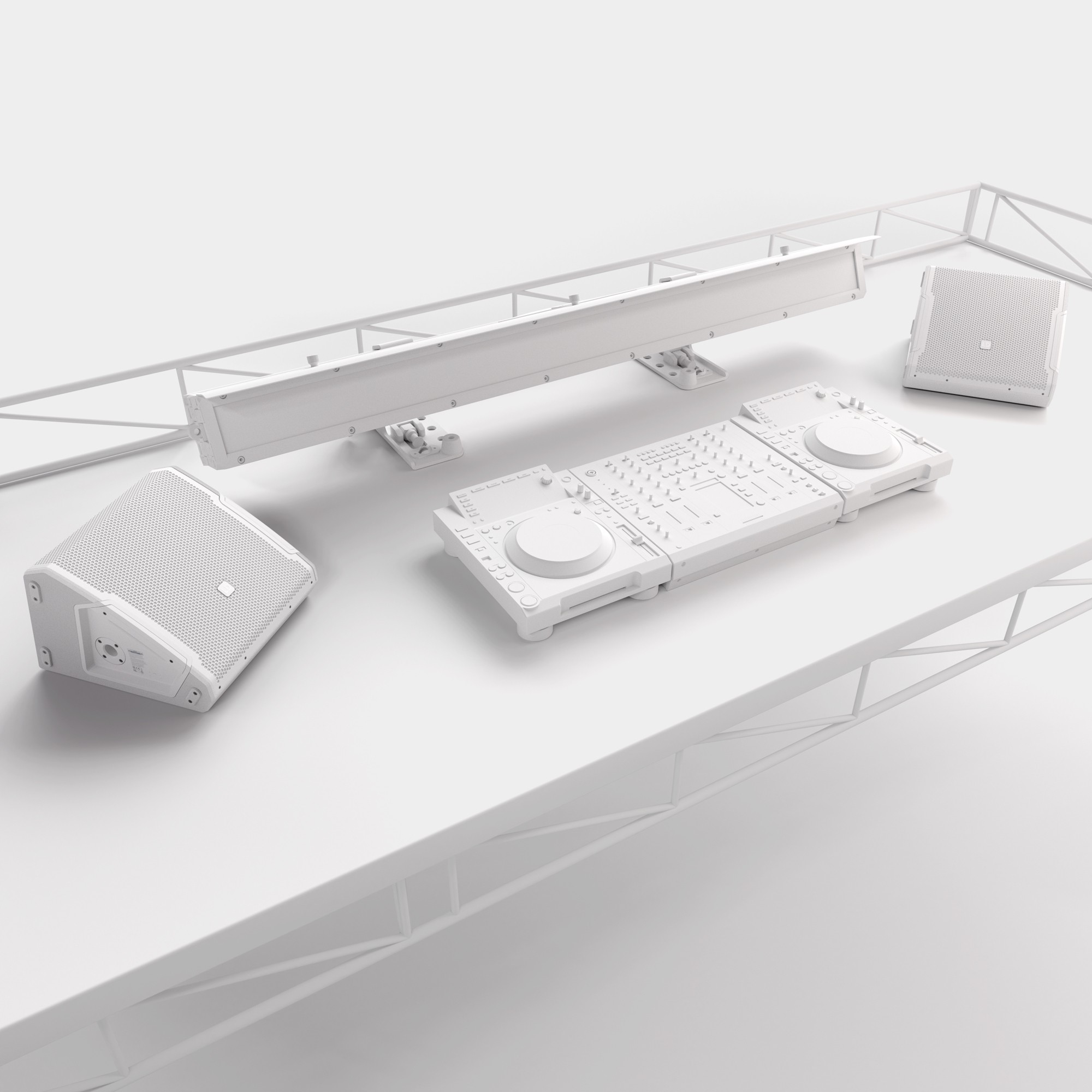

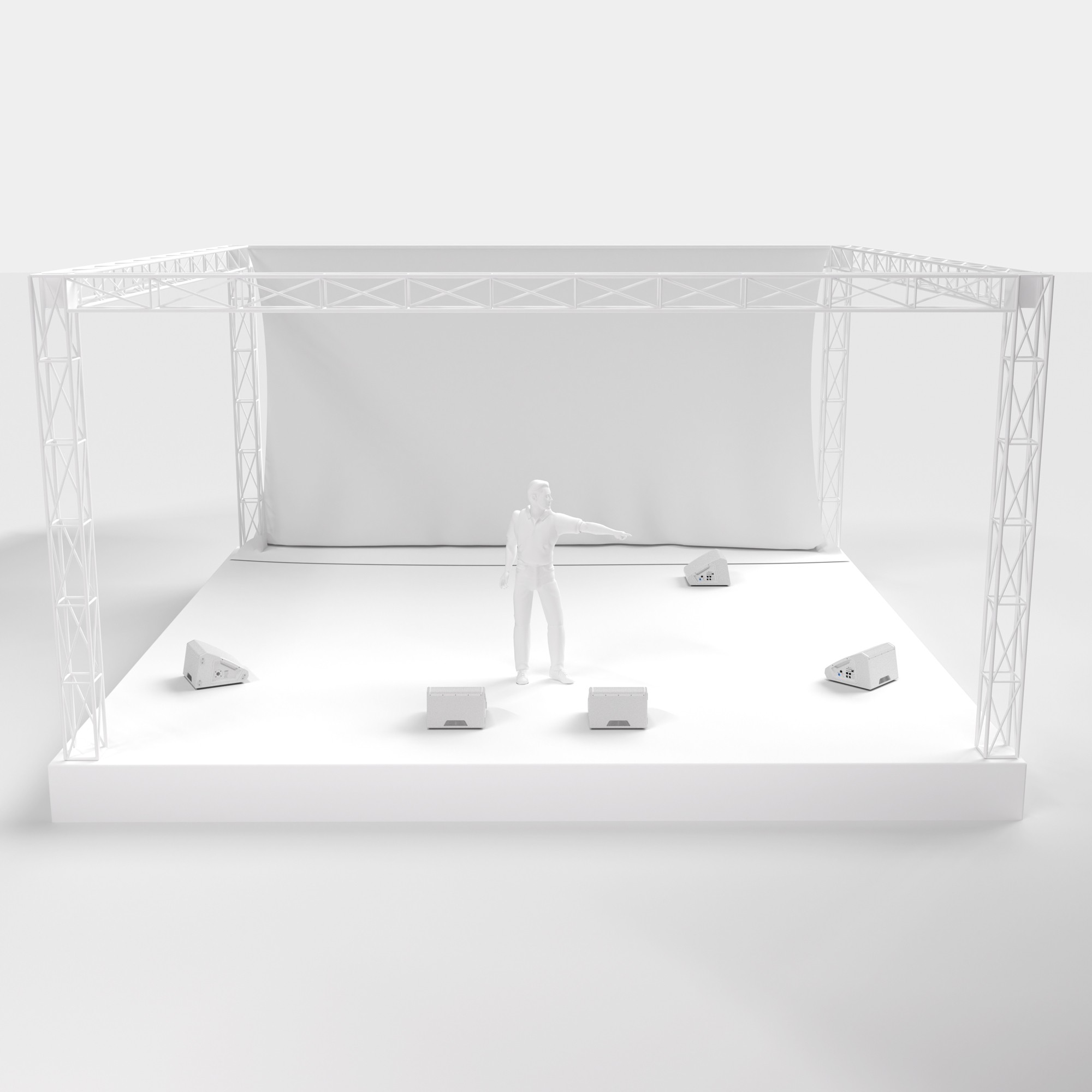

As the smallest member of the new family of stage monitors, the MON 8 A G3 W is particularly discreet and versatile in use: as a stage monitor, in a DJ setup or on a speaker stand, as a front-of-house speaker, as a satellite in 2.1 systems or as a delay line speaker. The frequency response of the MON 8 A G3 W goes down to 59 Hz, an unusually low value considering its dimensions; this is called full-range reproduction.

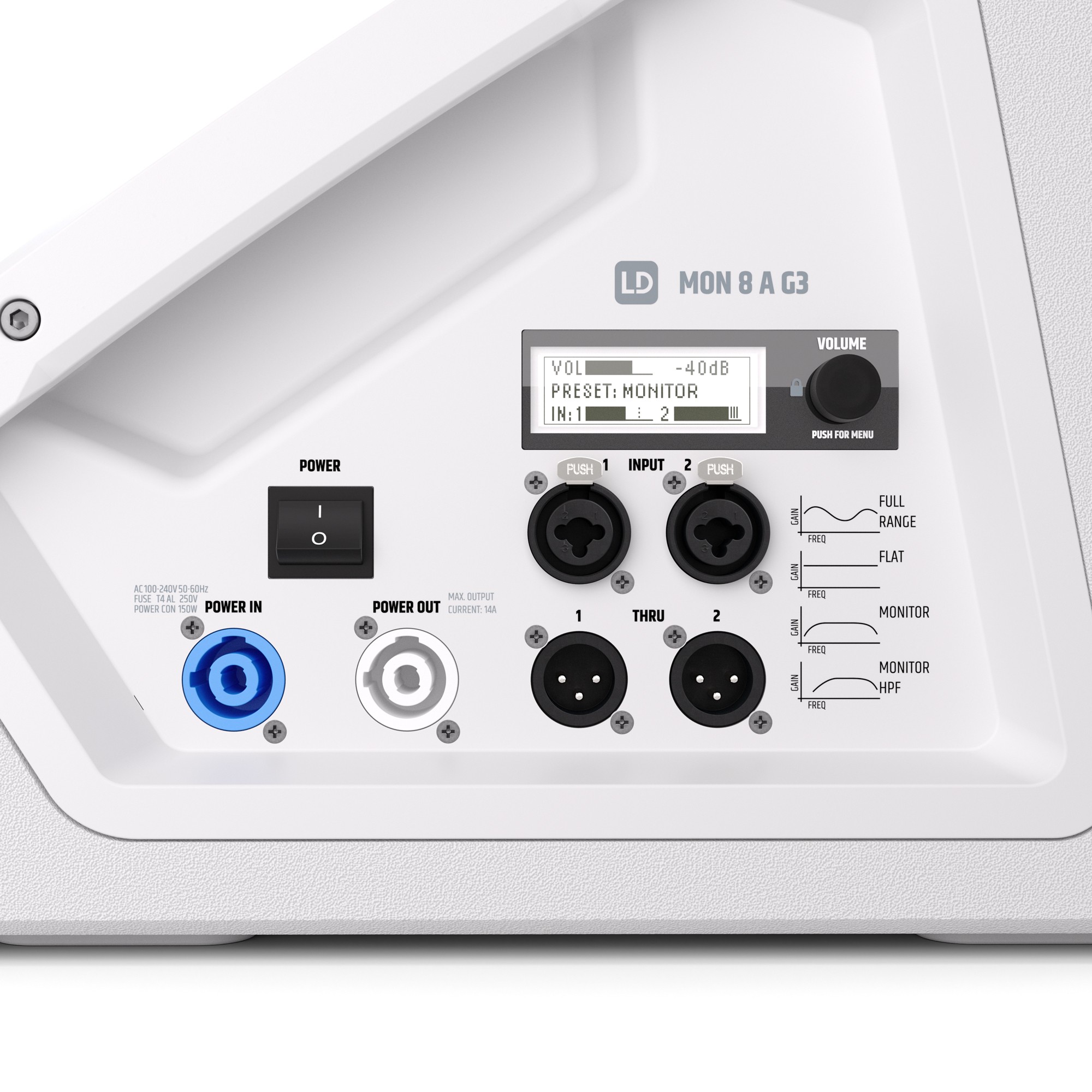

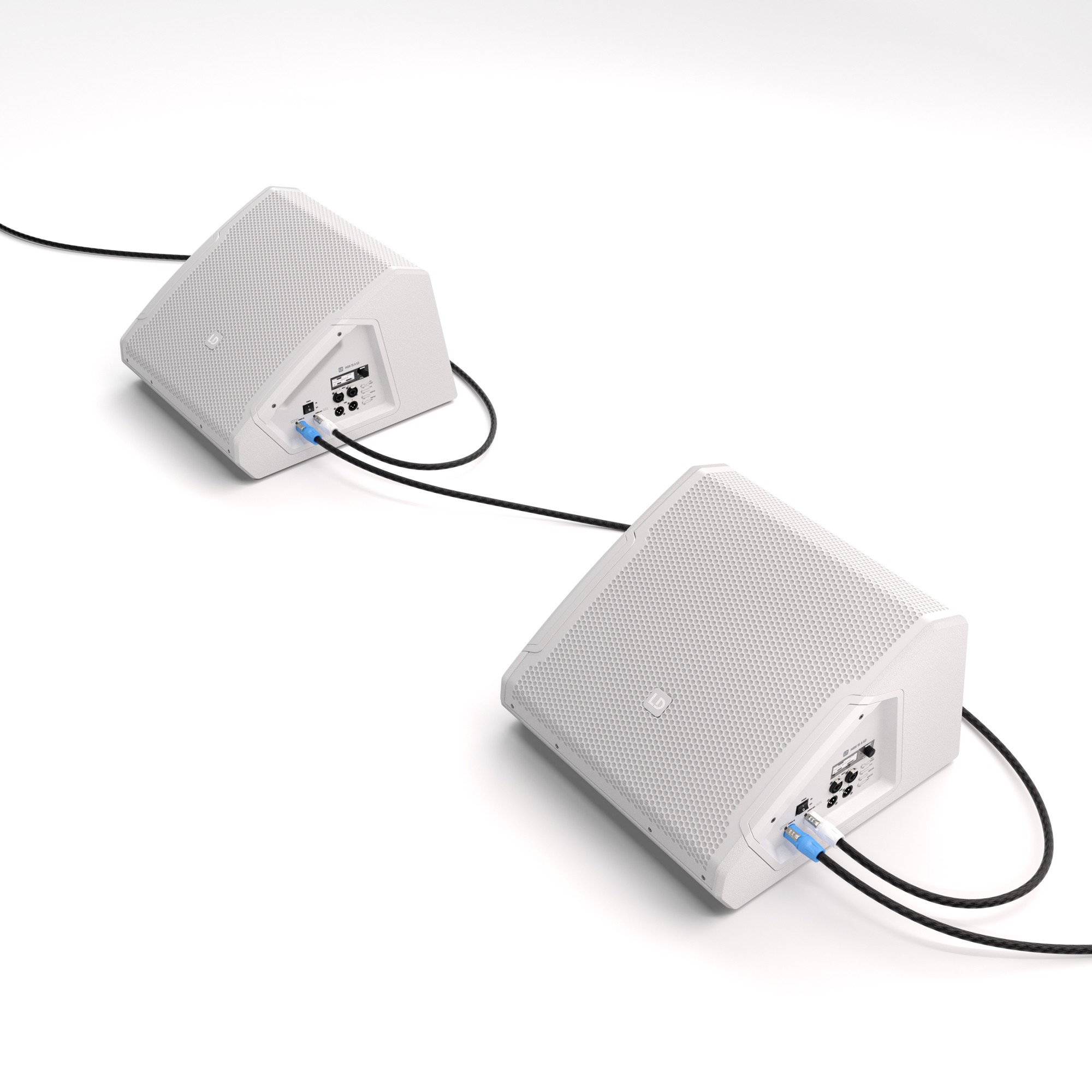

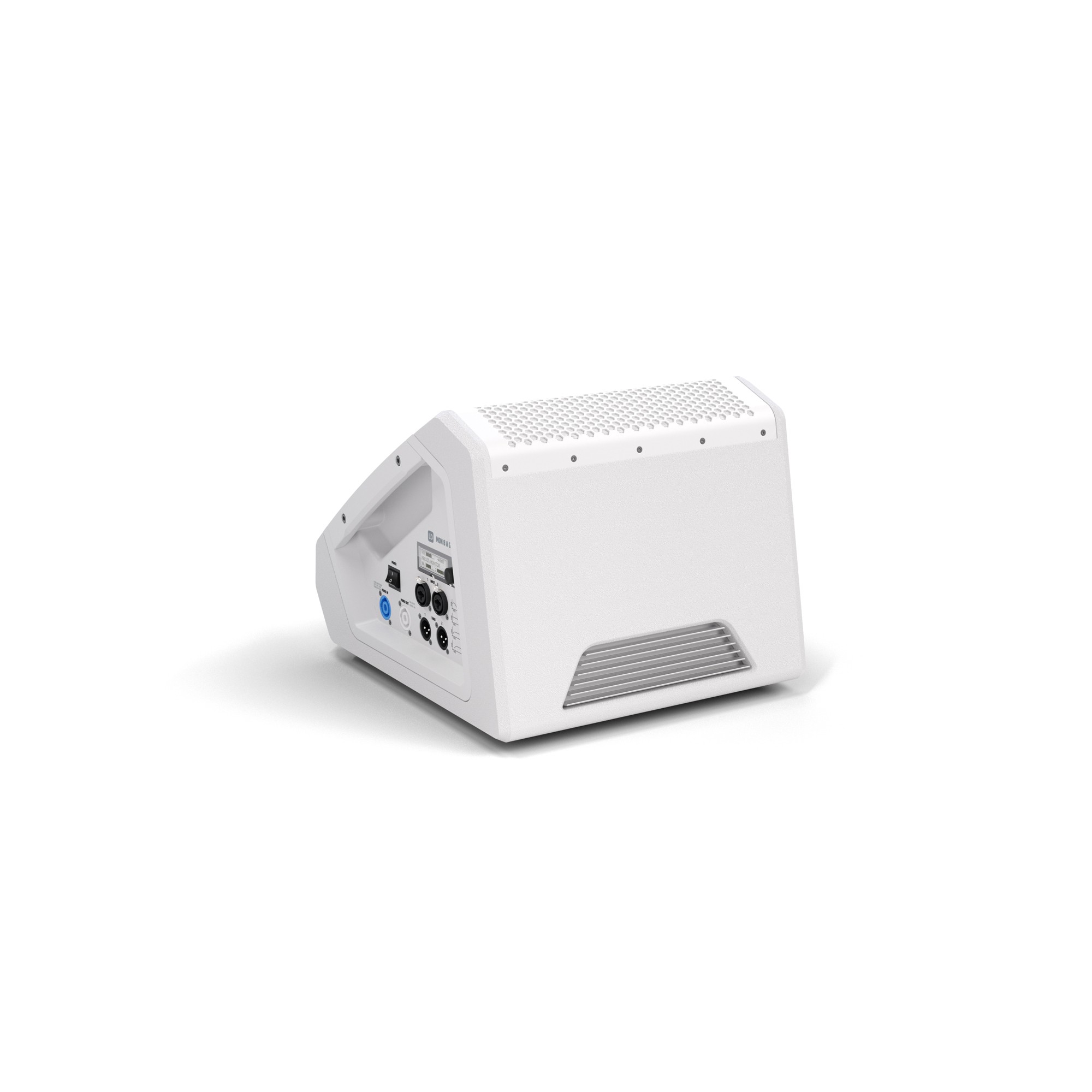

Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution systems.
The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals, and makes this quality available to everyone. For example, the advanced coaxial drivers, equipped with a 50° x 90° constant directivity horn: they are a true point source, an acoustically ideal solution, guaranteeing exceptional audio performance, even in close listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.
As the smallest member of the new family of stage monitors, the MON 8 A G3 W is particularly discreet and versatile in use: as a stage monitor, in a DJ setup or on a speaker stand, as a front-of-house speaker, as a satellite in 2.1 systems or as a delay line speaker. The frequency response of the MON 8 A G3 W goes down to 59 Hz, an unusually low value considering its dimensions; this is called full-range reproduction.
Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution systems.
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 1001 bis 1500 watts RMS
- PA-Lautsprechertyp Bühnen Monitor
- Allgemeines
- Art des Produkts : Bühnenrückwand
- Art : Aktiv
- Farbe: Weiß
- Systemleistung (eff.): 300 W
- Systemleistung (Peak): 1200 W.
- Max. SPL Average (Sine Burst): 116 dB (100 Hz - 12 kHz, Fullspace @1m, 10% THD).
- Max. SPL Peak (Sine burst): 121 dB (Fullspace @1m, 10% THD).
- Frequenzgang (-3 dB): 68 - 18.000 Hz.
- Frequenzgang (-10 dB): 59 - 20.000 Hz.
- Trennfrequenz: 2500 Hz
- Winkel des Monitors: 33°.
- Abstrahlwinkel (H x V): 50° x 90°.
- Abmessungen
- Breite: 340 mm
- Tiefe: 368 mm
- Höhe: 278 mm
- Gewicht: 13,2 kg
- Funktionen
- 4 Voreinstellungen für Anwendungen
- Delay Line
- 3-Band-Equalizer (High, Mid, Low)
- Notch-Filter
- Tieftöner
- Durchmesser: 8" (203,2 mm)
- Spule: 2,5" (65 mm)
- Magnet: Ferrit
- Typ: Koaxialer Lautsprecher
- Marke: Maßgeschneidert
- Gehäuse
- Typ: Bassreflex
- Material: 15 mm Birkensperrholz, 15 mm MDF-Platte.
- Hochtöner
- Durchmesser: 1" (25,4 mm)
- Spule: 1,75" (44,45 mm)
- Magnet: Ferrit
- Schalltrichter: Konstante Richtwirkung (CD)
- Marke: Maßgeschneidert
- Verstärkermodul
- Verstärker: Klasse D
- Schutzschaltungen:
- Mehrbandbegrenzer
- Schutz vor Überlastung, Überhitzung und Überspannung.
- Betriebstemperatur: 0 - 40 °C
- Zulässige Luftfeuchtigkeit: < 80 % (nicht kondensierend).
- Sicherung: T4AL 250 V
- Einstellungen und Anzeigen
- Einstellungen: Dreh-/Druckcodierer, Ein-/Ausschalter.
- Anzeigen: LCD-Bildschirm
- Stromversorgung
- Typ: SMPS
- Spannung: 100 - 240 V, 50 - 60 Hz.
- Stromverbrauch: 150 W
- Anschluss Stromversorgung: PowerCON-kompatibel
- Anschlüsse
- Line-Eingänge: 2
- Anschlüsse: 6,35 mm Klinke, XLR Combo.
- Leitungsdurchführung (Line Out): 2
- Line Out-Anschlüsse: XLR
