Usb audio interface

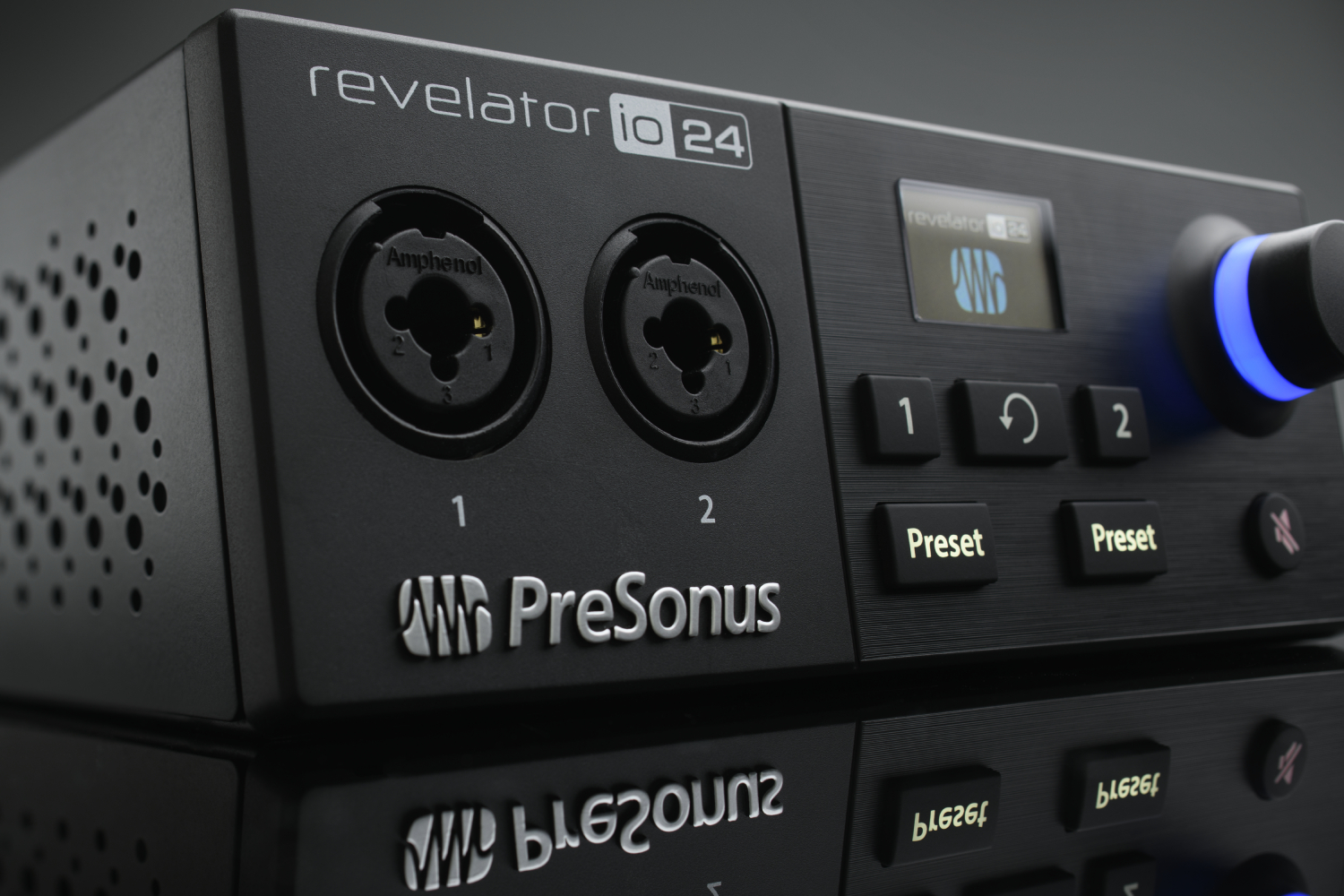

Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24’s intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Quickly record Zoom calls for your podcast, add backing tracks to your live stream performance, and more.

Produce a great mix for your stream fast by engaging Stream Mix mode and with the click of a button, your complete DSP mix–analog inputs, loopback channels, reverb, and effects–are patched to the USB stream, where you can easily send it to your streaming software. No complex routing or extra hardware required.

You’ll also get over $1000 USD of software to record, produce, and polish your podcasts and music, including: Studio One Artist, Ableton Live Lite, and the Studio Magic Suite. Whether you’re producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is built to ‘cast.

Technisches Arbeitsblatt

DSP Ja

Type : USB-C™ Compatible USB 2.0
Sample Rates : 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit Depth : 24 bit
ADC Converter Dynamic Range : 105 dB
DAC Converter Dynamic Range: 105 db
Hardware Controls: Direct Monitor Balance, Main Output Level, Headphone Level, Mic Level, Mute, Preset Select, Return
Software Controls: Mic Gain, Stereo Link, Loopback Mixes, Monitor Mix, Preset Management, Stream Mix Mode
PreSonus StudioLive Fat Channel: High Pass Filter, Noise Gate / Expander, 3 Compressor models, 3 EQ models, and Limiter
Digital Loopback Mixer: 8 input digital mixer, 3 stereo loopback mixes, stereo monitor mix
Voice Effects: Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay, Reverb
Microphone Inputs:
Maximum Level: +10 dBu (±0.5 dBu, min gain)
Gain Range: 60 dB
Frequency Response: 20 Hz - 20 kHz (+0.1dB/-0.3 dB, unity gain, unwtd)
THD + N: 0.009% (1 kHz, -1 dBFS, min gain)
EIN: -126 dBu (A-weighted, 150Ω, max gain)
Input Impedance: 1.4 kΩ
Phantom Power: +48 VDC (10 mA total)
Instrument Inputs
Maximum Level: +10 dBu (min gain)
Gain Range: 50 dB
Frequency Response: 20 Hz – 20 kHz (+0.1dB/-0.3 dB, unity gain, unwtd)
THD + N: 0.009% (1 kHz, min gain)
Input Impedance: 1M Ω
Main Outputs
Type: ¼" TRS, Female
Maximum Level: +10 dBu (1 kHz, unity gain, z-balanced)
Frequency Response: 20 Hz – 20 kHz (+0.1dB/-0.3 dB, unity gain, unwtd)
THD + N: 0.003% ( 1 kHz, -1 dBFS, unity gain)
Headphone Outputs
Maximum Power: 40 mW / channel @ 56Ω
Frequency Response: 20 Hz – 20 kHz (+0.1dB/-0.5 dB, unity gain, unwtd)
THD + N: 0.010 % (1 kHz, 0 dBFS, loaded)
Impedance Working Range: 32Ω to 300Ω
Height 2.5”
Width 6.25”
Depth 6.25”
Weight 2lbs
