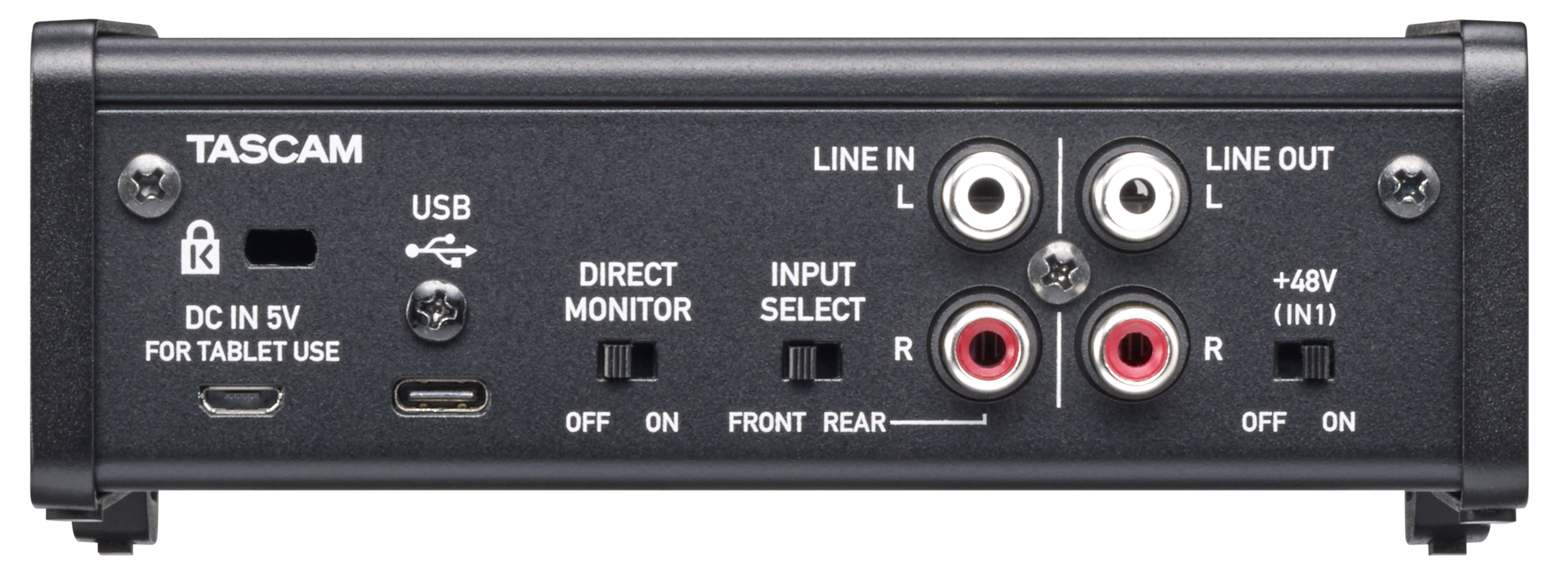

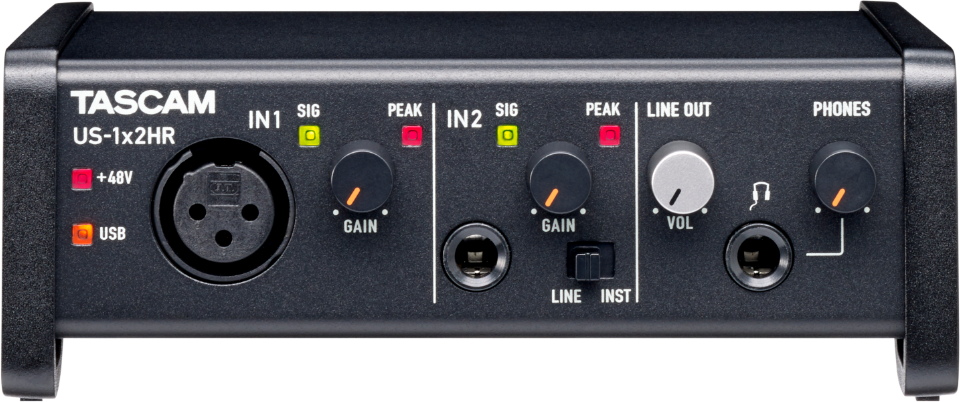

Tascam US-1X2HR

Usb audio interface
119.00 €
+
-
LIEFERBAR - sofort verfügbar
  • Brauchen Rat +33 1 81 930 900

  • Schnelle Lieferung

  • Garantie : 3 Jahre Garantie

    Zufrieden oder zurückerstattet : innerhalb von 30 Tagen

Aktie

Spezifikationen

Ref : 98202
- Dsp : nein
Audio resolution
- Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Digital resolution: 24 bits

Analog audio inputs
- Mic input (balanced, IN 1): XLR-3-31
- Input impedance: 2.4 kΩ
- Nominal input level (input level on maximum): ?65 dBu (0.0004 Vrms)
- Nominal input level (input level on minimum): ?8 dBu (0.0775 Vrms)
- Maximum input level: +10 dBu (2.449 Vrms)
Maximum gain 58 dB

Line/instrument input (balanced/unbalanced, IN2)
- 1/4" stereo jack (TRS)
- Input selector switch to LINE (balanced)
- Input impedance: 10 kΩ
- Nominal input level (input level on maximum): ?41 dBu (0.0069 Vrms)
- Nominal input level (input level on maximum): +4 dBu (1.228 Vrms)
- Maximum input level: +20 dBu (7.75 Vrms)
Maximum gain: 45 dB
- Input selector switch to INST (unbalanced)
- Input impedance ?1 MΩ
- Nominal input level (input level on maximum): ?51 dBV (0.0028 Vrms)
- Nominal input level (input level on maximum): -6 dBV (0.5015 Vrms)
- Maximum input level: +3 dBV (1.4125 Vrms)
Maximum gain: 45 dB

- Line input L/R (unbalanced)
- RCA connector
- Input impedance: 10 kΩ
- Maximum input level: +6 dBV (1.995 Vrms)

Analog Audio Outputs
- L/R line output (unbalanced)
- RCA connector
- Impedance: 100 Ω
- Maximum output level: +6 dBV (1.995 Vrms)

Headphone output
- 1/4" stereo jack connector
- Maximum output power: 18 mW + 18 mW or more (THD+N ?0.1%, at 32 Ω)

Other inputs and outputs
- USB : USB type C, 4 points
- Transfer rate : USB 2.0 'High speed' (480 Mbit/s)
- Power supply (DC IN 5V)
- Micro-B type USB connector

Audio features
- Equivalent Input Noise Level (EIN) : ?128 dBu or less (at 150 Ω, input level on maximum)
Frequency response
- Mic input:
- 44.1/48 kHz: 20 Hz - 20 kHz, +0 dB/-0.4 dB (JEITA)
88.2/96 kHz : 20 Hz - 40 kHz, +0 dB/-0.4 dB (JEITA)
Line input:
- 44.1/48 kHz: 20 Hz - 20 kHz, +0.2 dB/-0.1 dB (JEITA)
88.2/96 kHz: 20 Hz - 40 kHz, +0.2 dB/-0.4 dB (JEITA)
Line output:
- 44.1/48 kHz: 20 Hz - 20 kHz, +0.2 dB/-0.1 dB (JEITA)
88.2/96 kHz: 20 Hz - 40 kHz, +0.2 dB/-0.4 dB (JEITA)
Signal-to-noise ratio
- Mic input to computer: 109 dB (Input level on minimum, low pass filter at 20 kHz, A-weighted)
- Line input to computer: 105 dB (Input level to minimum, 20 kHz low-pass filter, A-weighted)
- Computer to line output: 110 dB (Potentiometer - -MONITOR set to maximum, 20 kHz low pass filter, A-weighted)
Distortion (THD+N)
- Microphone input to computer: 0.0013% (Input level on minimum, -5 dBFS, 1 kHz sinusoidal, 20 kHz low pass filter)
- Line input to computer: 0.0027% (Input level on minimum, -5 dBFS, 1 kHz sinusoidal, 20 kHz low pass filter)
- Computer to line output: 0.0015% (MONITOR potentiometer on maximum, -4 dBFS, 1 kHz sinusoidal, 20 kHz low pass filter)
- Channel separation: 95 dB or more (Mic/line input to line output, 1 kHz sinusoidal, input level on minimum)

Computer configuration
- Windows
- System Requirements: Windows compatible computer with USB 2.0 port
- CPU/Processor Frequency: 2 GHz or higher, dual core (x86)
- RAM 2 GB or more
- Compatible audio driver formats: ASIO 2.0, WDM

Mac
- System requirements: Apple Mac computer with USB 2.0 port
- CPU/Processor Frequency: 2 GHz or higher, dual core
- RAM: 2 GB or more
- Compatible audio driver formats: Core Audio

iOS device
- iOS device running iOS 7 or later
- Compatible audio driver formats: Core Audio

Power and other features
- Power supply
- When used with a computer: USB bus power supply
- When used with an iOS device: USB adapter (which can provide 5V and at least 700mA of power)
- External battery pack (which can supply 5V and at least 700mA)**
- Power consumption: 1.8 W
- Dimensions (H × W × D, excluding protrusions): 146 mm × 55 mm × 120 mm
- Weight: 623 g
- Operating temperature: 5 to 35 °C
