Aktive lautsprecher

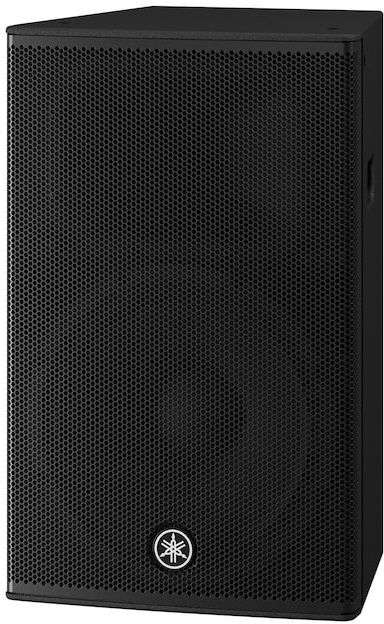

The Yamaha DHR15 is an active PA speaker.
The DHR15 is a 2-way powered speaker with a 15" woofer and a 1.4" HF driver.
The 1.4-inch driver is perfect for use as a main speaker. Combining a 1000W amplifier and high performance DSP with the same plywood construction as Yamaha's top of the line DZR series.
Yamaha, the DHR15 offers unmatched sound quality and durability.
Ultra-Precise DSP Processing for High-Definition Sound.
Intelligent Dynamic Control for Consistent Clarity at Any Output Level.
Extensive DSP Protection Functions for Maximum Output
High-Efficiency 1000W Class-D Amplifiers.

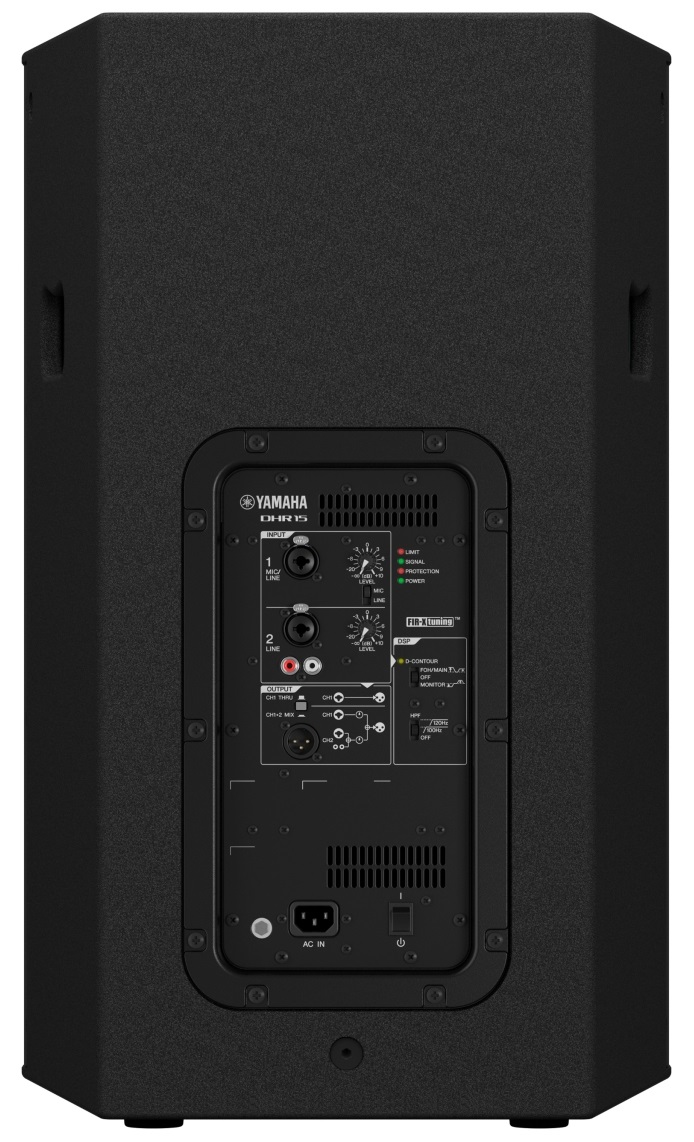

Easy-to-use Onboard 2-Channel Mixer
Dual-Angle Pole Mount Socket (DHR15).
The DHR15 is a 2-way powered speaker with a 15" woofer and a 1.4" HF driver.
The 1.4-inch driver is perfect for use as a main speaker. Combining a 1000W amplifier and high performance DSP with the same plywood construction as Yamaha's top of the line DZR series.
Yamaha, the DHR15 offers unmatched sound quality and durability.
Ultra-Precise DSP Processing for High-Definition Sound.
Intelligent Dynamic Control for Consistent Clarity at Any Output Level.
Extensive DSP Protection Functions for Maximum Output
High-Efficiency 1000W Class-D Amplifiers.
Easy-to-use Onboard 2-Channel Mixer
Dual-Angle Pole Mount Socket (DHR15).
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 601 bis 1000 watts RMS
- PA-Lautsprechertyp Bühnen & FOH Lautsprecher
- Speaker type : 2-way, Bi-amped Powered Speaker, Bass-reflex.
- Frequency range (-10dB) :44 Hz - 20 kHz
- Coverage area H90? x V60?
- Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
- Maximum Output Level (Measured peak, IEC noise@1m) 131 dB SPL
- Amplifier class Class-D
- Cooling Fan cooling, 4 speeds
- Power consumption 74 W (1/8power), 18 W (Idle)
- Power requirements 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
- A/D D/A Converters 24 bit 48 kHz Sampling
- Processors HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
- I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Net weight 24.0 kg (52.9 lbs).
- Dimensions : W:432mm H:692mm D:405mm
Weitere Spezifikationen
Weniger Spezifikationen
