Aktive lautsprecher

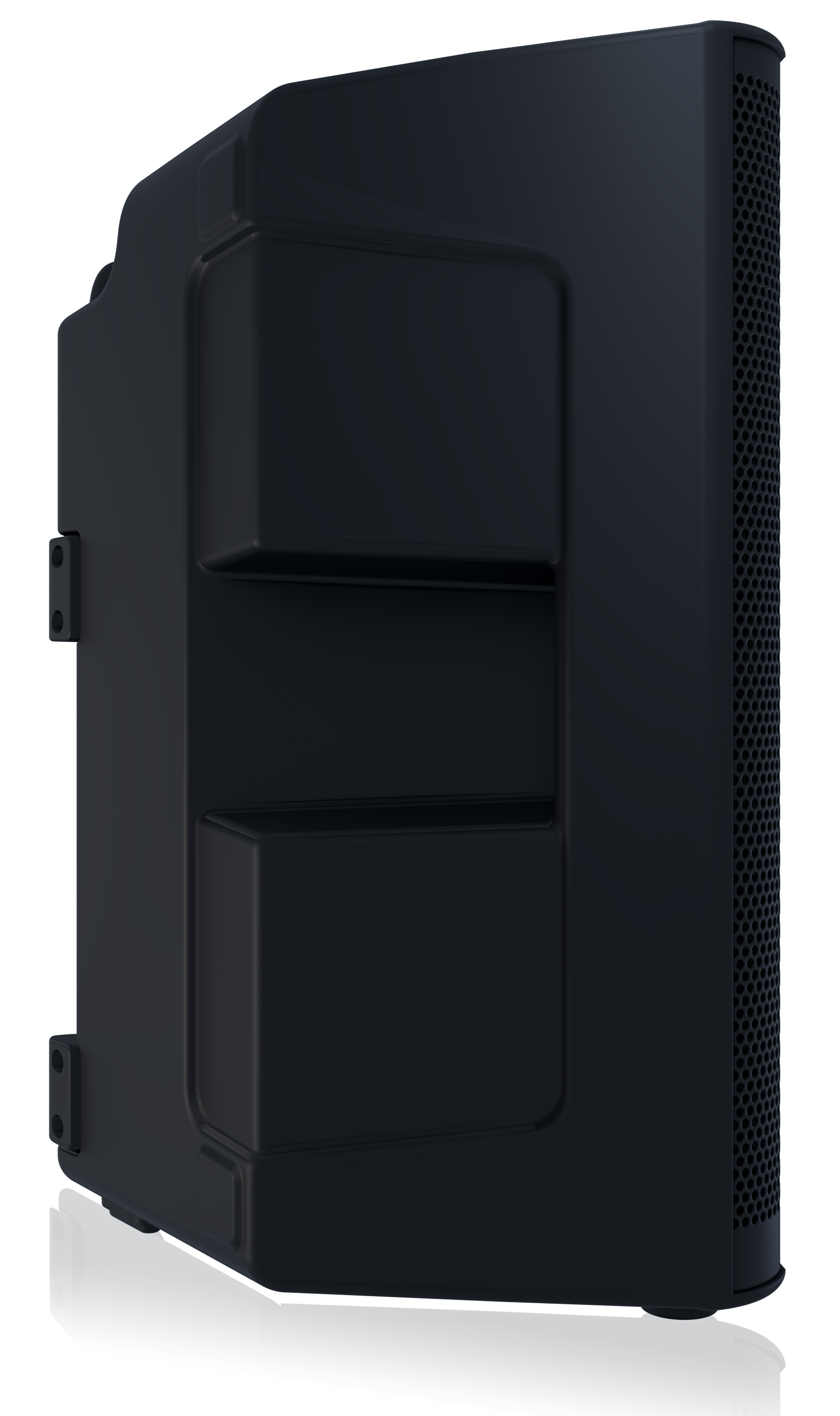

the Qsc CP12 is an active speaker of 1000 Watts.
Compact, powerful, high performance
- Class D amplifier module, peak power 1000 watts
- Easily selectable EQ contours for the most common audio applications.
- Advanced digital signal processing, Intrinsic Correction ™ technology for superior sound quality and protection
of the enclosure
- Directivity Matched Transition ™ Technology
(DMT) for a frequency response
consistent across the entire coverage area
- Light and easily transportable
- Professional, elegant appearance
in all applications
- Use in a main sound system,
as a stage return or amplifier
instrument
- 35 mm mast base
- Optional accessories: mounting bracket,
bag, outer cover
- Complete collection of EASE data and
CAD available online
- 3 years warranty
Compact, powerful, high performance
- Class D amplifier module, peak power 1000 watts
- Easily selectable EQ contours for the most common audio applications.
- Advanced digital signal processing, Intrinsic Correction ™ technology for superior sound quality and protection
of the enclosure
- Directivity Matched Transition ™ Technology
(DMT) for a frequency response
consistent across the entire coverage area
- Light and easily transportable
- Professional, elegant appearance
in all applications
- Use in a main sound system,
as a stage return or amplifier
instrument
- 35 mm mast base
- Optional accessories: mounting bracket,
bag, outer cover
- Complete collection of EASE data and
CAD available online
- 3 years warranty
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 1001 bis 1500 watts RMS
- PA-Lautsprechertyp Bühnen & FOH Lautsprecher
- Two-way active loudspeaker
- LF Transducer: 12 in (305 mm), cone
- HF Transducer: 1.4 in (35.6 mm) compression driver
- Frequency Response (-6 dB) 49 - 20 kHz
- Frequency Range (-10 dB) 47 - 20 kHz
- Nominal Coverage Angle: 75° Axisymetric
- Maximum Rated SPL1: 126 dB
- Amplifier: Class D
- Peak: 800 W (LF), 200 W (HF)
- Controls: Power 2 x Gain
- Mic Boost Push Switch
- 6-way Contour Selection Switch
- Indicators: Power LED
- 2 x Input Signal LED
- Input B MIC selected LED
- Limiter active LED

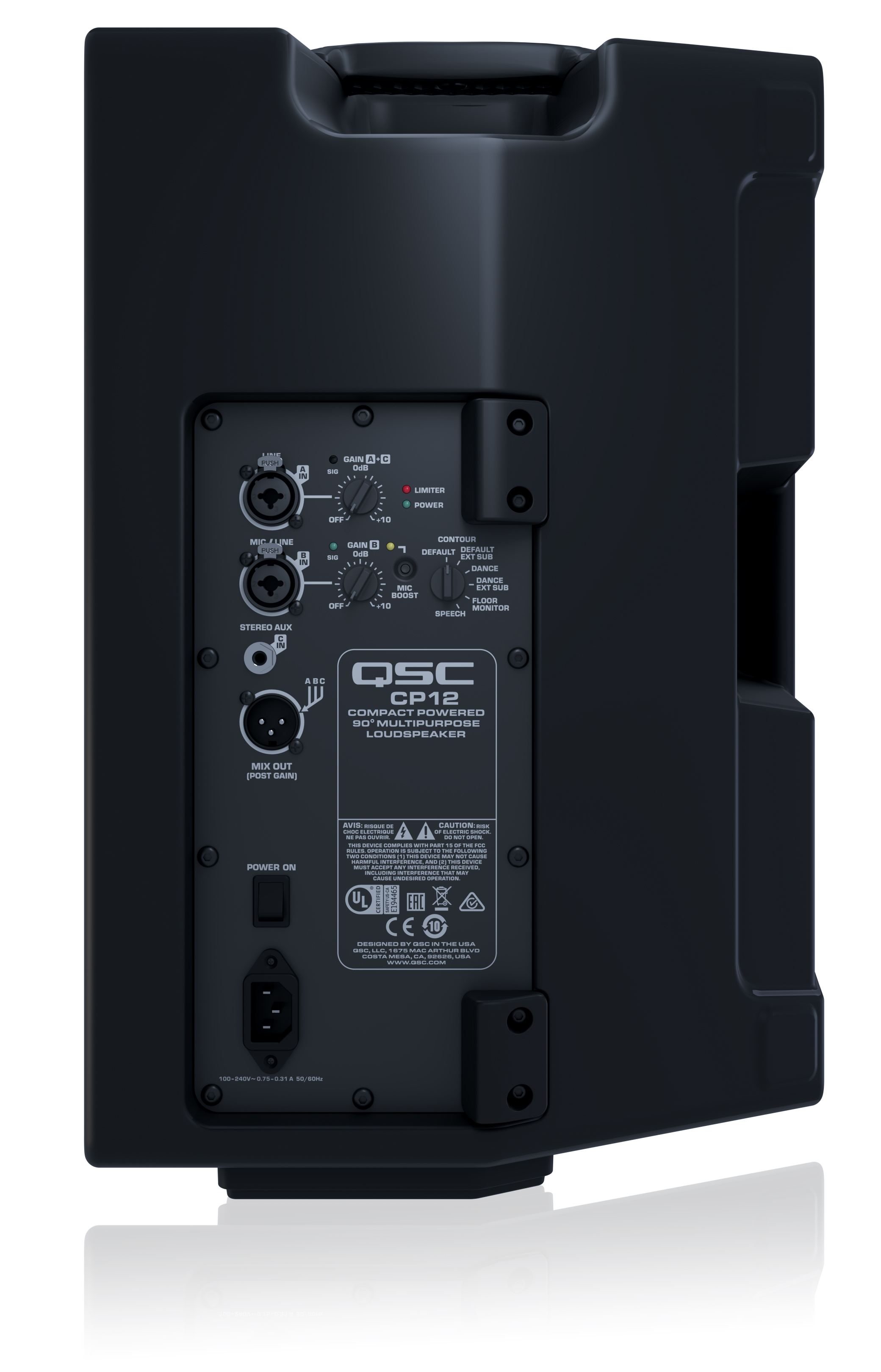

- Connectors: 2 x locking XLR/F ¼” combo (Line Input and Mic/Line input)
- 1 x 3.5 mm TRS (Stereo Input)
- 1 x XLR/M (Mix Output)
- 1 x IEC power connector
- AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
- AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A
- Enclosure Material: Polypropylene
- Attachment Points: M10 threaded insert
- Color: Black (RAL 9011)
- Grille: 18 Gauge powder-coated steel
- Dimensions (HxWxD): 20.3 x 13.8 x 12.7 in
- 516 x 350 x 323 mm
- Net Weight: 30.3 lbs (13.7 kg)
- Shipping Weight: 36.3 lbs (16.5 kg)
- Regulatory: EMC, UL, CB
- Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke
